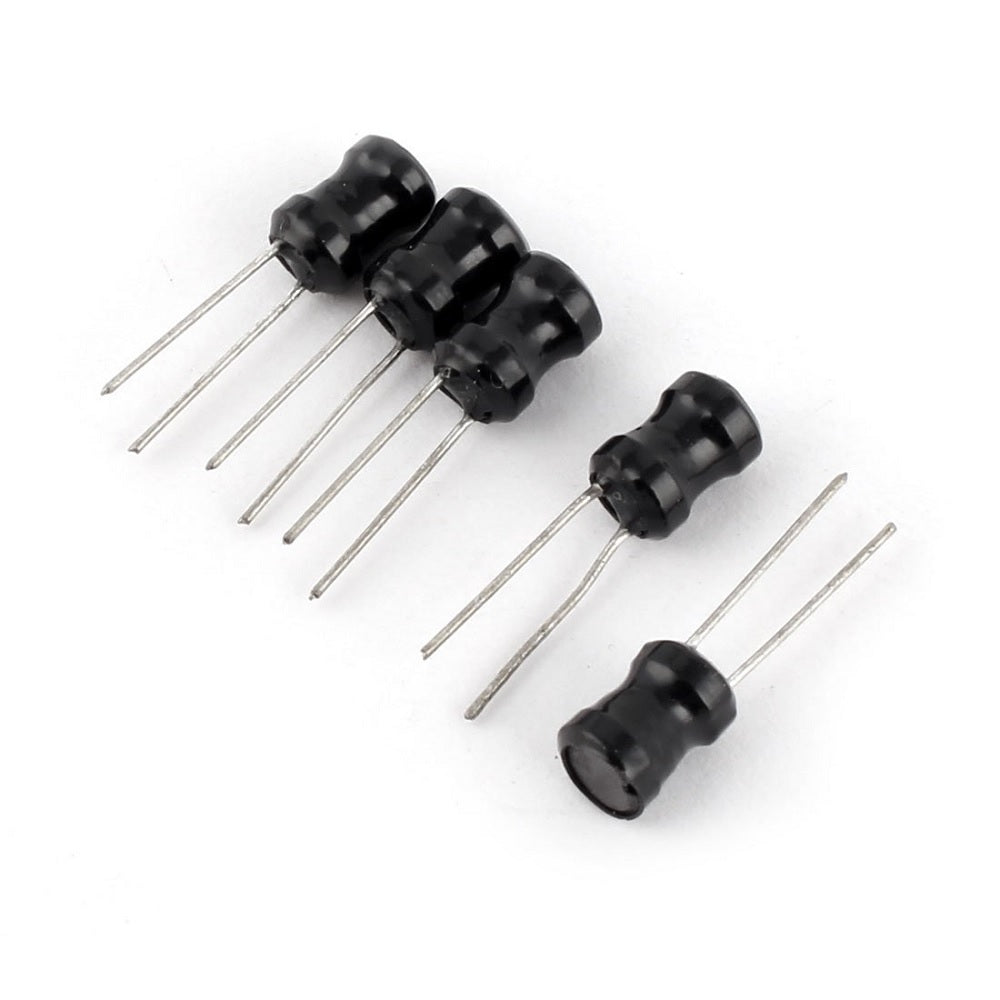

33uH 6*8mm DIP Power Inductor

SKU: 002005H

Send Inquiry

Description

An inductor is an electrical component that possesses inductance. The 6x8mm 33uH power inductor also known as a choke coil, choke, or differential mode inductor is used to limit the alternating current through the coil. It also has good magnetic shielding. Inductor coil uses are found in slowing down the current flow, thereby storing it in an electromagnetic field and passing them to the circuit.

Technical Specification:

  • Inductance: 33uH
  • Tolerance: 10%
  • Mounting Type: Through Hole
  • DC Resistance at 20°C: 1.8 mΩ
  • Current Rating: 0.27A
  • Frequency: 1000Hz
  • Operating Temperature Range: -40°C to 85°C
  • Inductor Diameter: 8mm
  • Lead Spacing Pitch: 4mm
  • Width: 6mm
  • Height: 8mm

Features:

  • Small size
  • High Q factor
  • High self-resonance frequency
  • Small magnetic flux leakage
  • Magnetically shielded
  • RoHS free
  • Small magnetic flux leakage

Applications:

  • Use of inductor in circuit like tuning circuits
  • Sensors
  • Store energy
  • Induction motors
  • Transformers
  • Filters
  • Chokes
  • Ferrite beads
  • As relays
