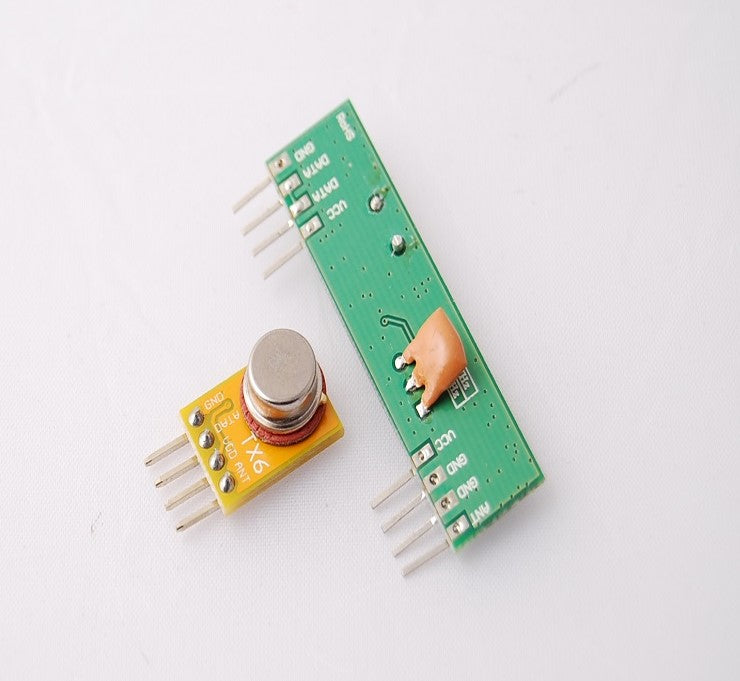

315MHz RF Transmitter Receiver Wireless Module

SKU: VM42

Price:
Sale price Rs. 150.00 (excl.18% GST)
Rs. 177.00

Description

This wireless transmitter and receiver pair operates at 315Mhz. They can easily fit into a breadboard and work well with microcontrollers to create a very simple wireless Receiving frequency (MHz) data link. Since these are only transmitters, they will only work communicating data one-way, you would need two pairs (of different frequencies) to act as a transmitter/receiver pair.

This Radio Transmitter & Receiver pair is perfectly matched to allow you to control items from a distance up to 500 feet wirelessly! Connect the transmitter to your Arduino, Raspberry Pi or other microcontroller and the receiver to whatever you’d like to control.

Both the transmitter and receiver are in tune to the same Radio Frequency so that when the transmitter emits a signal, the receiver will hear it wirelessly. Great for easy and simple wireless control! Arduino & Raspberry Pi 2 / B / B+ / A+ Compatible!

Technical Specification:

Receiver module parameters:

  • Working voltage: 3V ~ 12V
  • Working current: 20mA ~ 28mA
  • Standby current: 0mA
  • Working frequency: 315MHz
  • Transmitter distance: >500m (sensitivity can be above -103dBm if in the wide field)

Receiver module parameters:

  • Working voltage: DC 5V
  • Working current: 4mA
  • Modulation mode: OOK (AM)
  • Working temperature: -10°C ~ +70°C
  • Receiving sensitivity: -110dB

 Features:

  • Wide input supply (2.5 V to 12V)
  • Easy to integrate (V+, GND, and Data)
  • The device in deep sleep mode when Data pin is grounded
  • Very small dimension

 Applications:

  • Wireless calling system
  • Burglar alarm
  • Wireless data transmission
  • Automated data acquisition system
  • Wireless remote control switch
  • Remote control socket
  • Data transmission
  • Remote control toys
  • Anti-theft alarm host
