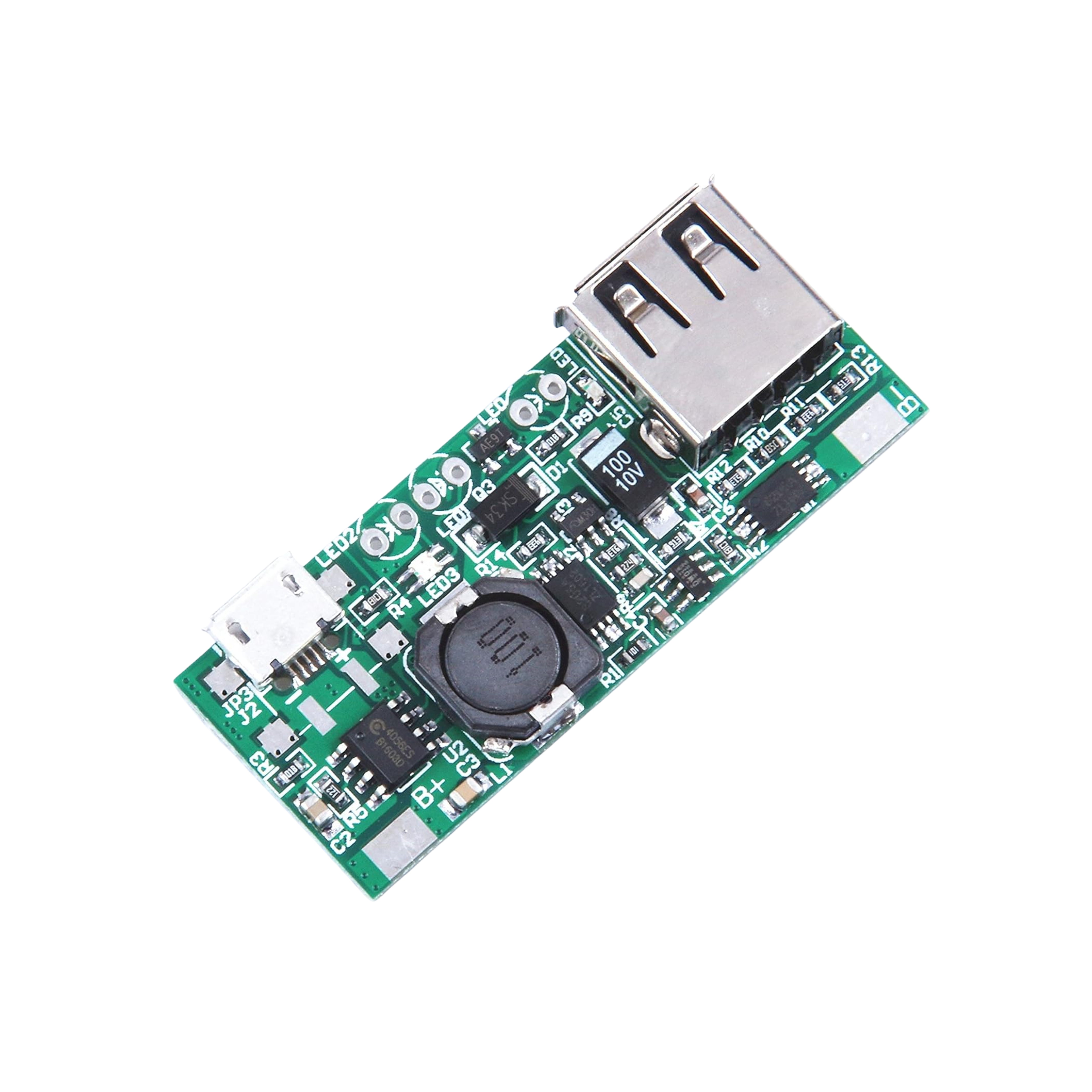

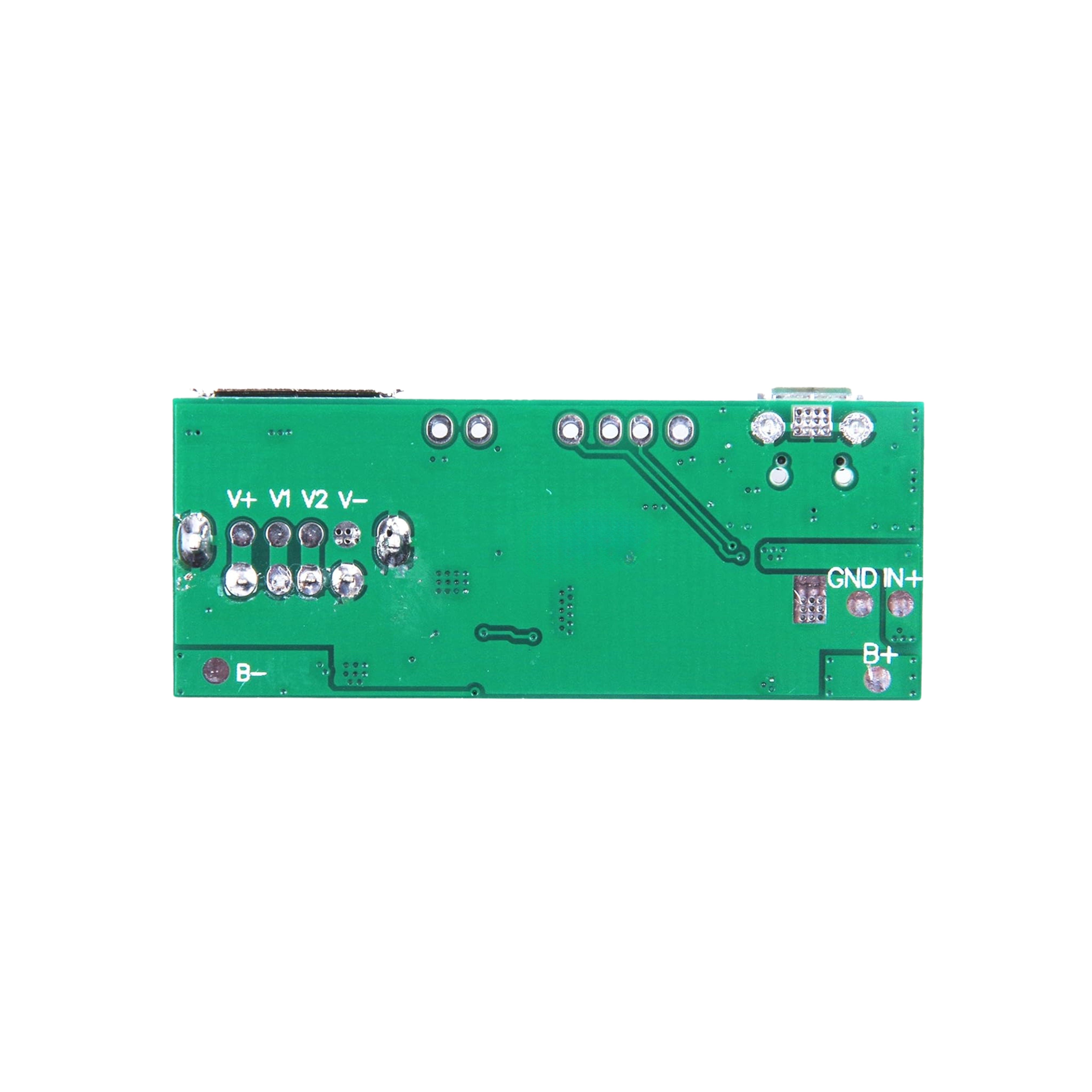

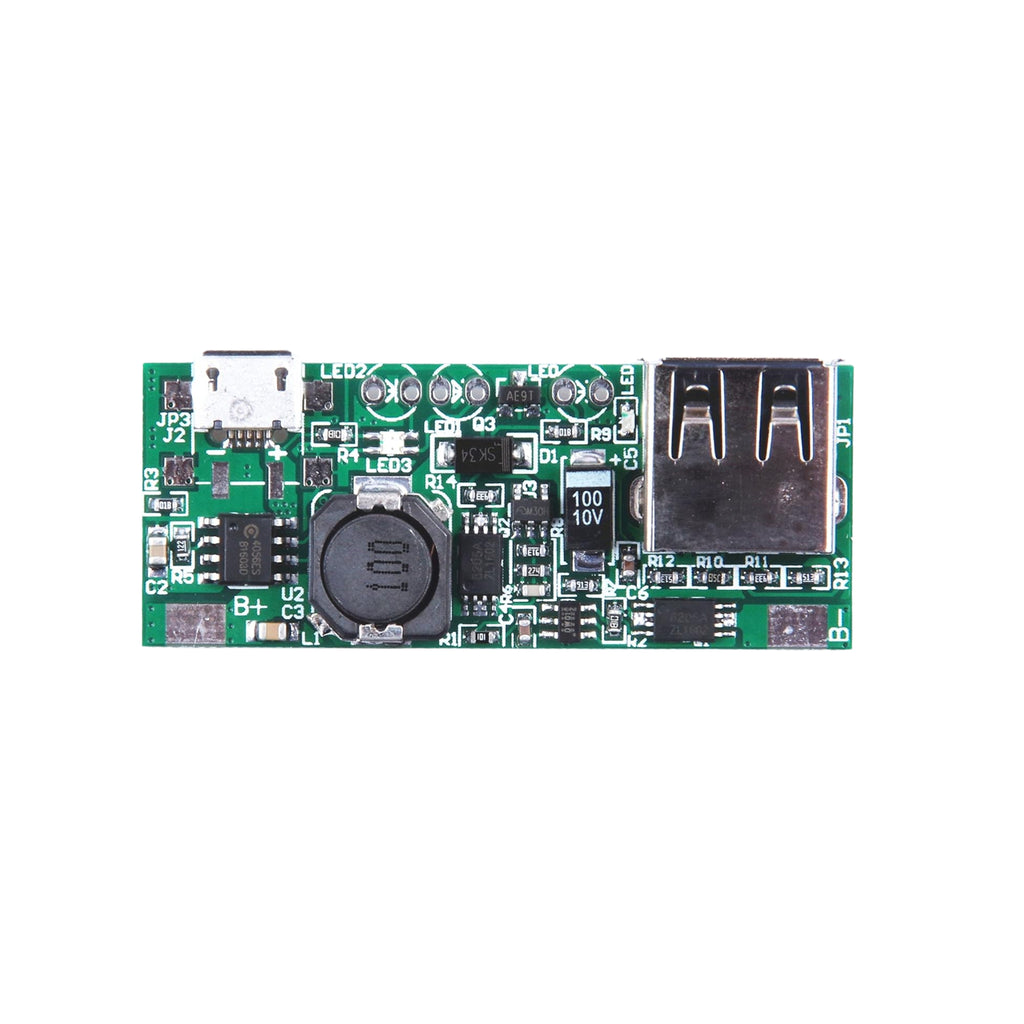

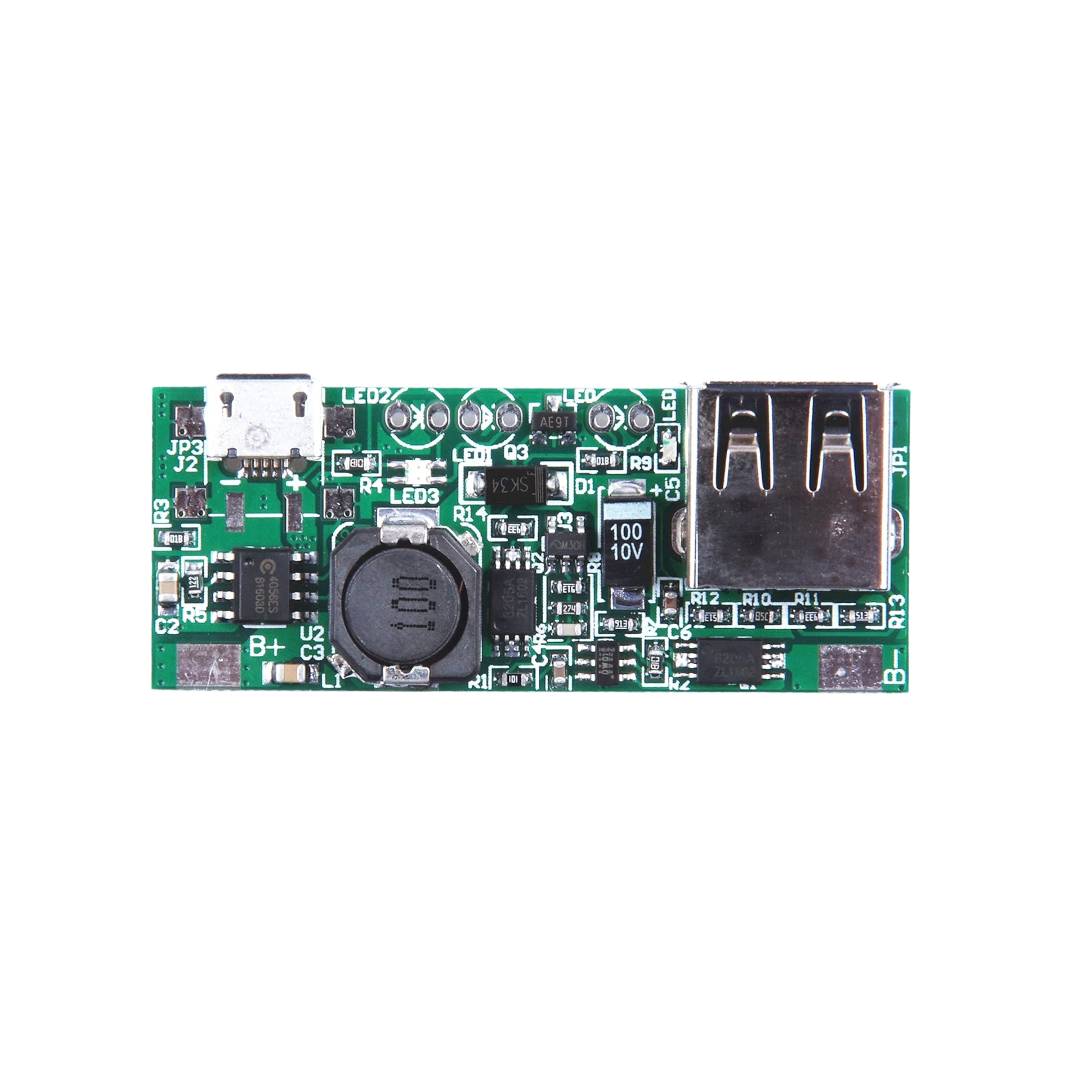

3.7V to 5V 1A Lithium Battery Board Module Board Charger USB Mini USB Lithium Boost Module

The Portable Power Bank Board Module is a compact charging and voltage boost circuit designed for building DIY power banks using rechargeable lithium-ion batteries. It combines battery charging, protection, voltage boosting, and USB output functionality on a single PCB. The module allows a 3.7V lithium battery to provide a stable 5V USB output suitable for charging mobile phones, development boards, and USB-powered devices.

This module is widely used in portable electronics and battery-powered projects because of its compact size, efficient power conversion, and built-in safety features.

Technical Specifications:

• Input Voltage: 5V DC (Micro USB input)

• Battery Type: 3.7V Lithium-ion / Lithium-polymer battery

• Charging Voltage: 4.2V

• USB Output Voltage: 5V DC

• Output Current: Up to 1A (typical)

• Charging Current: Approx. 1A

Features:

• Integrated lithium battery charging and protection circuit

• Boost converter generates stable 5V USB output

• Compact and lightweight PCB design

• Micro USB charging interface for convenient charging

• USB Type-A port for powering USB devices

• Built-in LED indicators for charging and power status

• High conversion efficiency with low standby power consumption

• Supports DIY portable power bank projects

• Safe operation with multiple protection mechanisms

Applications:

• DIY power bank and portable charger projects

• Battery-powered embedded systems

• Portable USB power supply for Arduino and Raspberry Pi

• Emergency mobile phone charging systems

• Rechargeable battery management projects

• Portable lighting and USB gadgets

• IoT and wearable device power solutions

• Educational and electronics laboratory experiments
