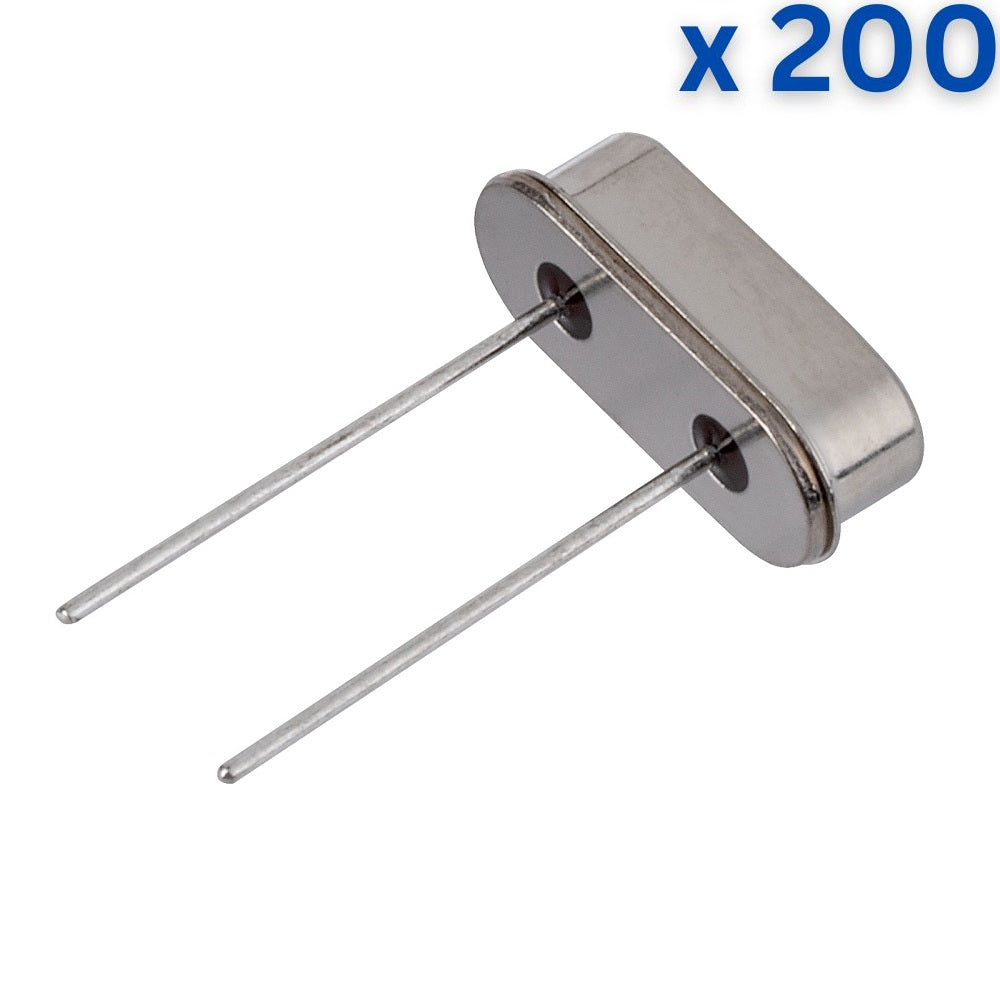

3.57MHz Crystal Oscillators HC49/US Package

SKU: 000176D

Quantity: 10 Pcs
Sale price Rs. 101.69 (excl.18% GST)
Rs. 120.00


This is an electronic oscillator circuit. It uses the mechanical resonance of a vibrating crystal of piezoelectric material. And then create an electrical signal with a precise frequency. This frequency is often used to keep track of time to provide a stable clock signal.

Technical Specification:

  • Frequency Range: 3.57MHz
  • Load Capacitance: 18pF
  • Frequency Tolerance: ± 30ppm
  • Frequency Temperature Stability: ±50ppm
  • Resonance Resistance: 40ohms (max)
  • Shunt Capacitance: <7pF
  • Drive Level: <100µW
  • Operating Temperature Range: -20 to + 70°C
  • Operable Temperature Range: -25 to + 85°C
  • Storage Temperature Range: -55 to + 125°C
  • Insulation Resistance: 500M?


  • Accuracy, compactness
  • Low cost, low power consumption
  • High-frequency generation
  • Low phase noise
  • High Q factor
  • Automatic amplitude control and frequency drift

Pin Description:



  • Monochrome TV transmitters
  • Digital integrated circuits
  • Smart wearables, cellphones, video games, etc
  • Military and Aerospace
  • Research and Measurement
  • Industrial Applications
  • Automotive
