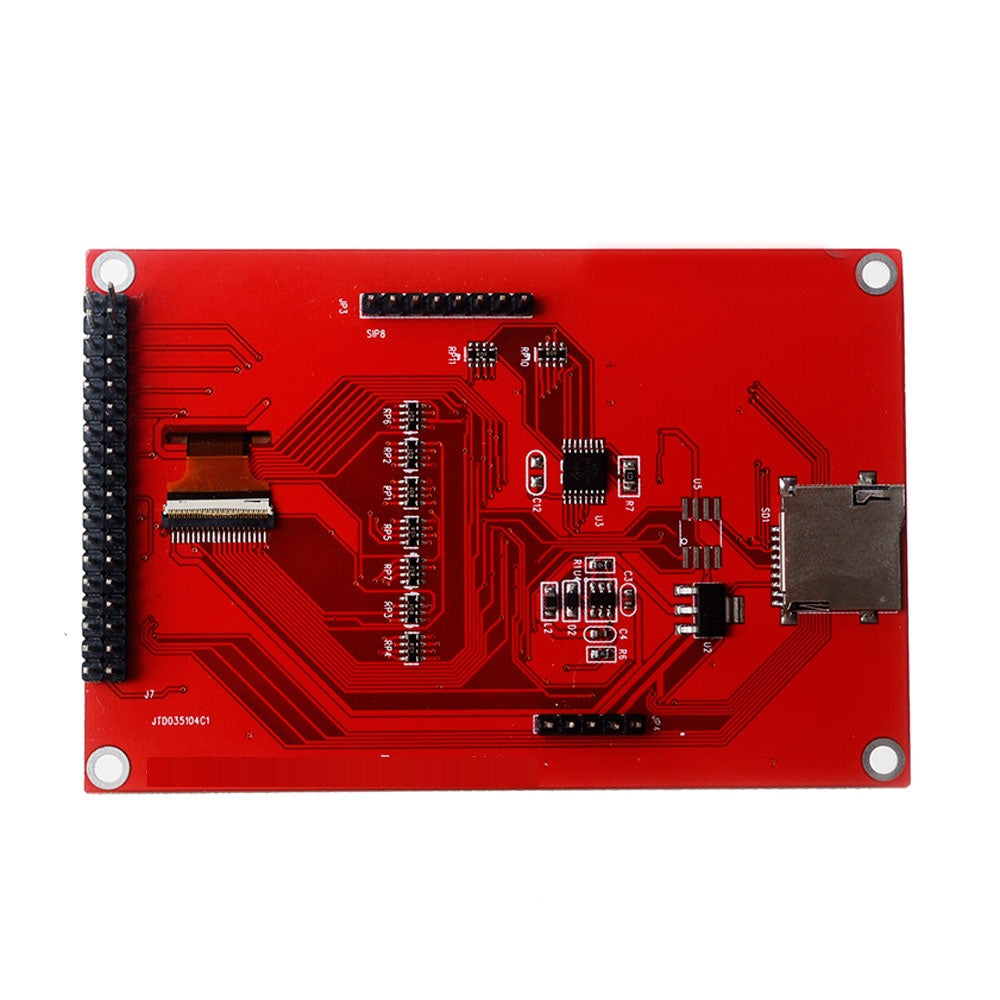

3.5" TFT Touch Screen Display for Mega

SKU: VM00476

Send Inquiry


3.5 inch TFT Touch Screen Display for Arduino is big (3.5″ diagonal) bright and colorful! 480×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display, and double our 2.8″ TFT.

As a bonus, this display has a resistive touchscreen sensor allowing you to control your application simply by touching any area of the screen. This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller.

Technical Specification:

  • RGB: 65K color
  • Screen Size: 5in
  • Type: TFT
  • Resolution: 480px*320px
  • Module Interface: 4-wire SPI interface
  • Active Area (AA area): 96mm*73.44mm (L*W)
  • Size: 34mm*98mm (L*W)


  • 3.5-inch color screen, support 65K color display, display rich colors
  • 480X320 resolution, optional touch function
  • Using the SPI serial bus, it only takes a few IOs to illuminate the display
  • Easy to expand the experiment with SD card slot
  • Provide a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support


  • Touch applications
  • Digital applications
  • Robotics applications
