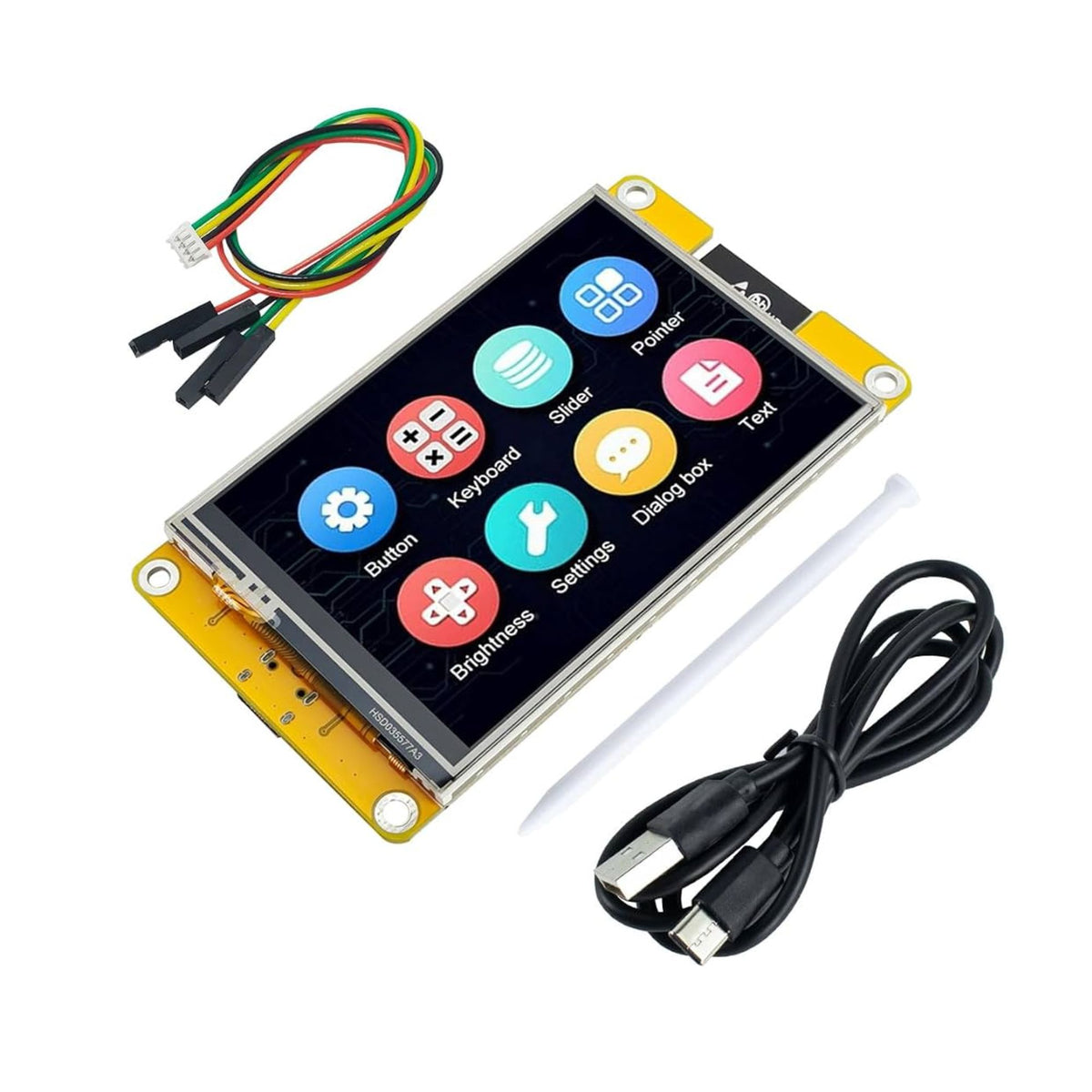

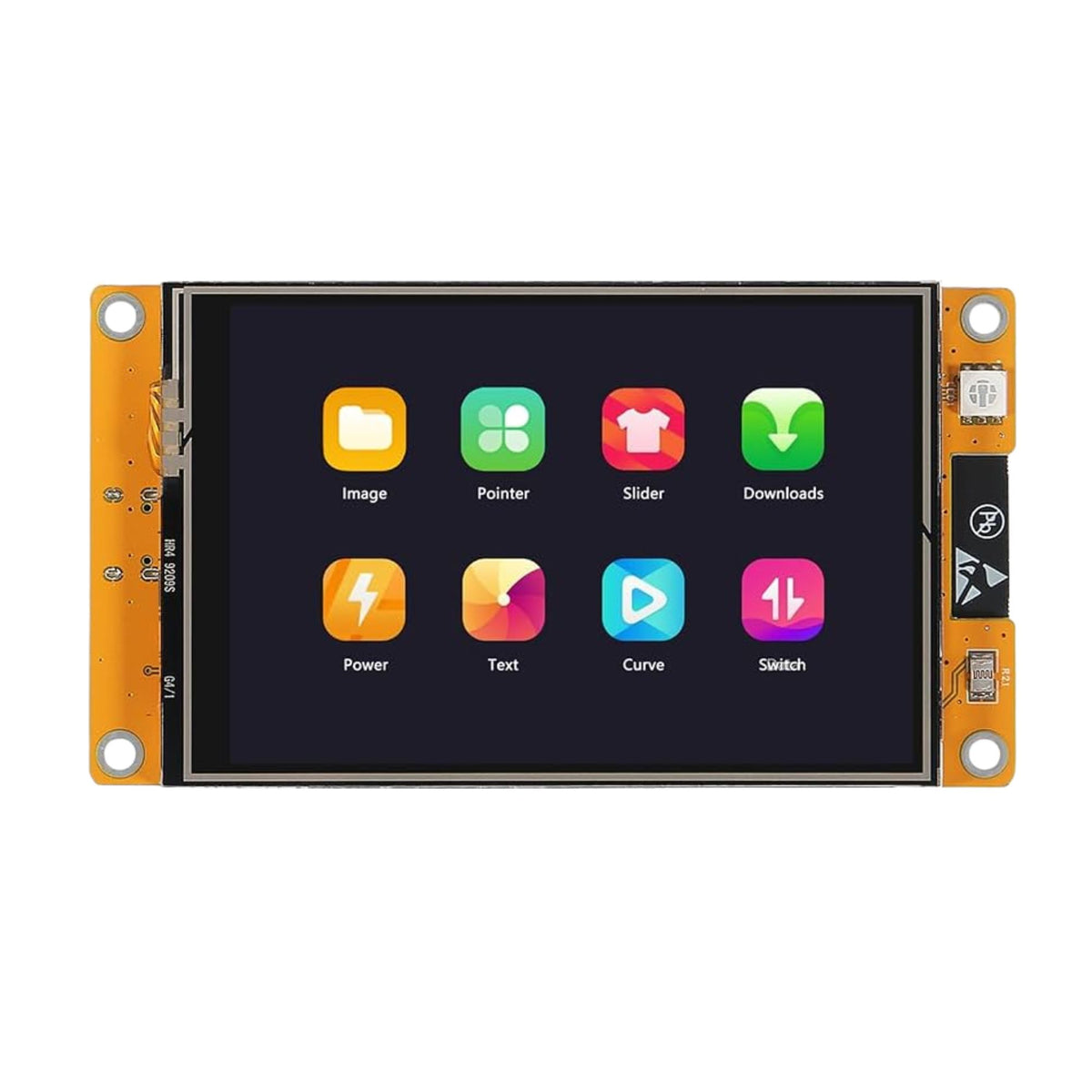

3.5 inch ESP32-32E Display 320*480 TFT Resistive Touch Screen WIFI&Bluetooth For Arduino

The 3.5 Inch ESP32-32E Display 320×480 TFT Resistive Touch Screen is an all-in-one development module that combines an ESP32-WROOM-32E controller with a 3.5-inch color TFT display and resistive touchscreen. It provides built-in 2.4 GHz Wi-Fi and Bluetooth, allowing it to be used for connected IoT, HMI, automation and Arduino-based projects. The board also includes USB Type-C programming, MicroSD/TF storage expansion and interfaces for sensors, speakers and other peripherals.

Technical Specifications:

• Processor: ESP32-WROOM-32E dual-core Xtensa LX6, up to 240 MHz
• Display: 3.5-inch TFT, 320 × 480 resolution
• Touch Type: Resistive touch with XPT2046 controller
• Wireless: 2.4 GHz Wi-Fi 802.11 b/g/n + Bluetooth 4.2 / BLE
• Display Driver: ST7796U with SPI interface

Features:

• Integrated ESP32 controller, TFT display and touchscreen on one board
• Supports up to 262K display colors
• Built-in MicroSD / TF card slot for storage expansion
• USB Type-C interface for power and programming
• Supports external peripherals through SPI, UART and other expansion interfaces

Applications:

• IoT control panels and dashboards
• Smart-home and automation interfaces
• Touchscreen HMI systems
• Arduino and ESP32 graphical projects
• Industrial monitoring and embedded display applications
