20P 1mm FFC FPC Breakout

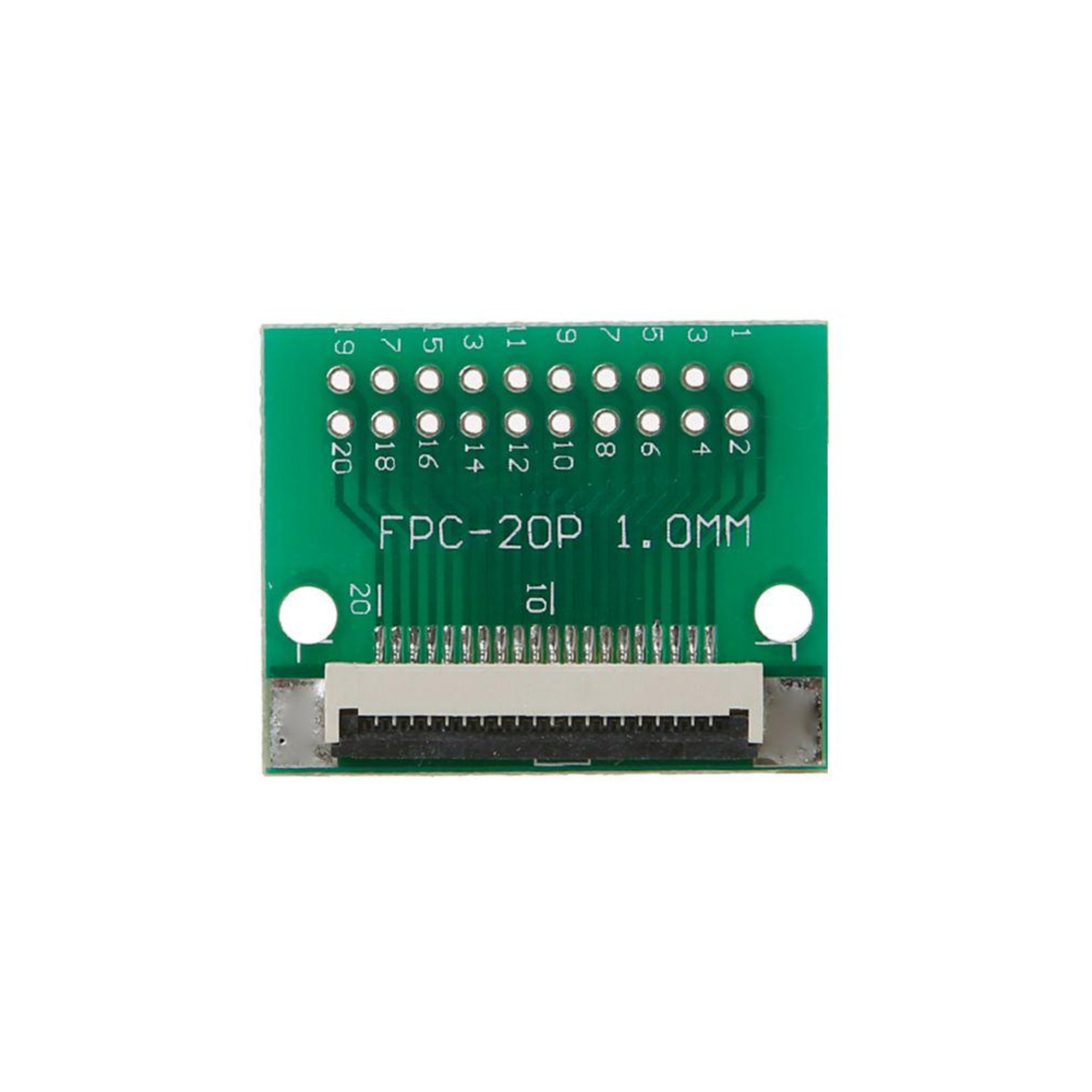

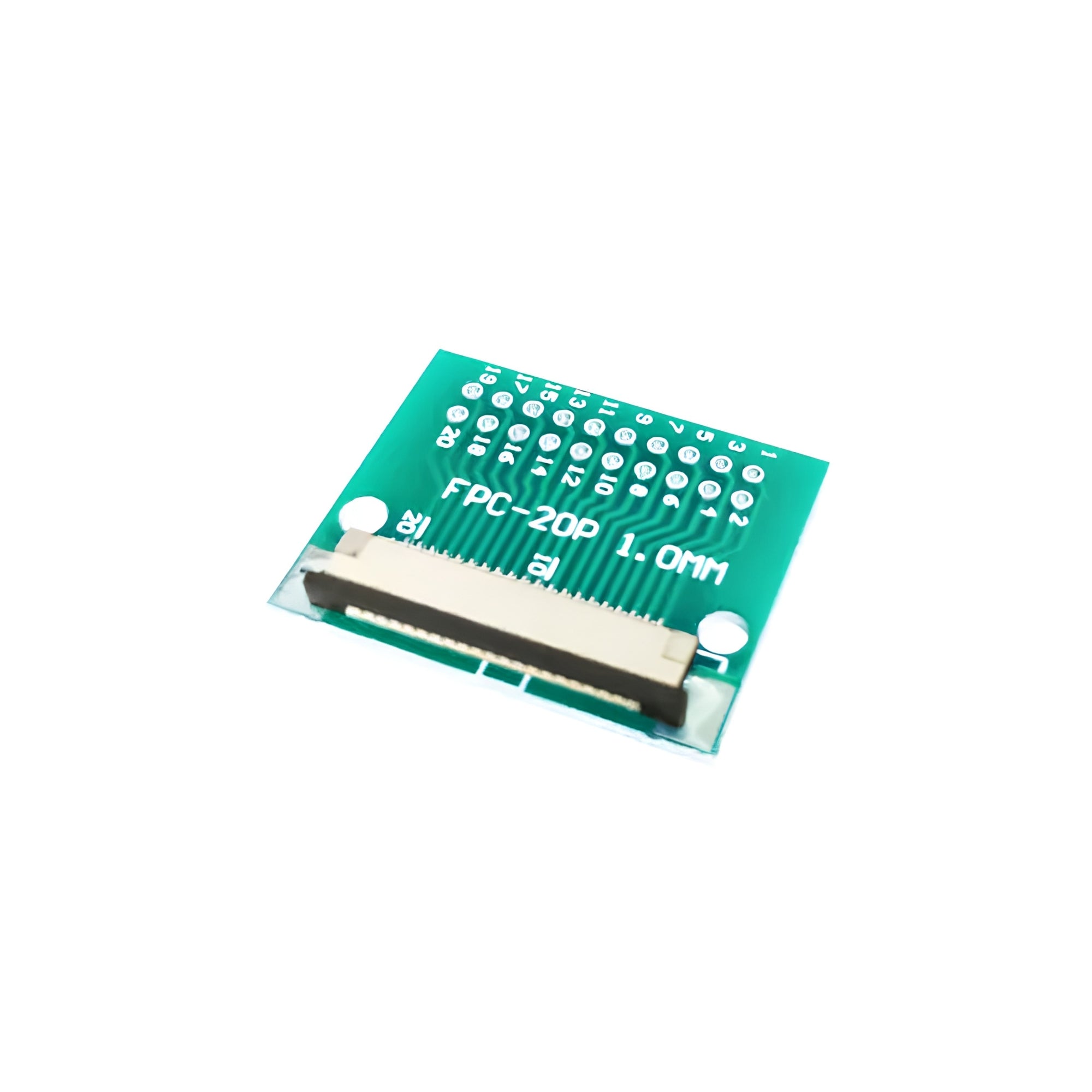

The 20P 1mm FFC/FPC Breakout Board is a compact adapter module designed for interfacing 20-pin Flat Flexible Cable (FFC) and Flexible Printed Circuit (FPC) connectors with standard prototype or custom circuits. It converts the fine-pitch FFC/FPC ribbon cable connections into accessible through-hole breakout pads for easy soldering, testing, and development.

This module is widely used in LCD displays, touch panels, camera modules, embedded systems, printers, and compact electronic devices where space-saving ribbon cable connections are required.

Technical Specifications:

• Connector Type: FFC / FPC Connector
• Pin Count: 20 Pins
• Pitch Size: 1.0mm
• Board Type: Breakout / Adapter PCB
• Connector Style: Flip-lock horizontal connector
• Contact Type: Bottom-contact connector

Features:

• Converts 20-pin FFC/FPC interface to standard breakout pads
• Clearly labeled pin numbering for easy wiring
• Compact and lightweight design
• Reliable flip-lock connector mechanism
• Suitable for prototyping and repairs
• Easy integration into embedded projects

Applications:

• LCD display interfacing
• Touchscreen controller connections
• Camera module interfacing
• Embedded system development
• Ribbon cable prototyping
• Printer and scanner repairs
• Consumer electronics repair
• DIY electronics projects
• Robotics and automation systems
• Signal breakout and testing
