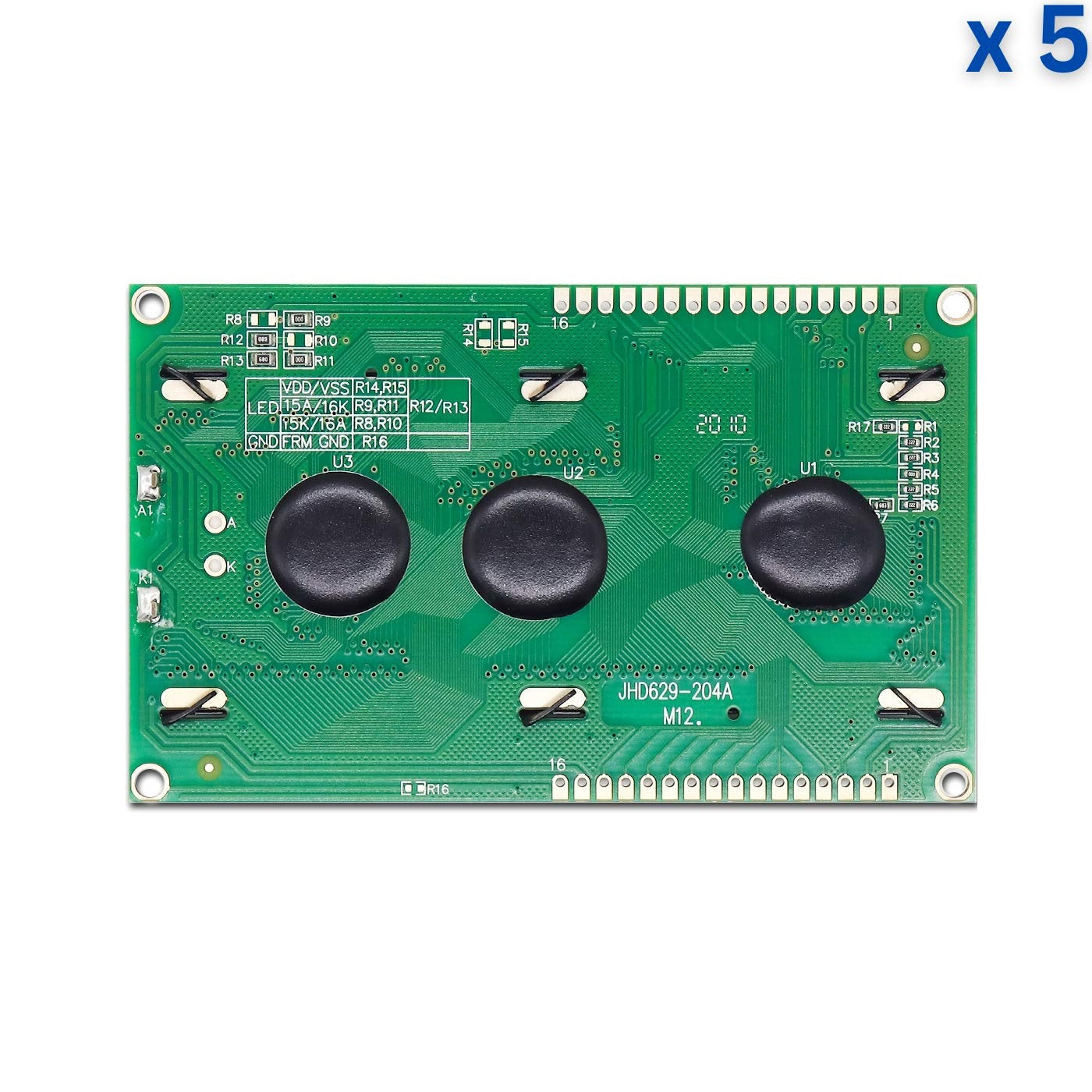

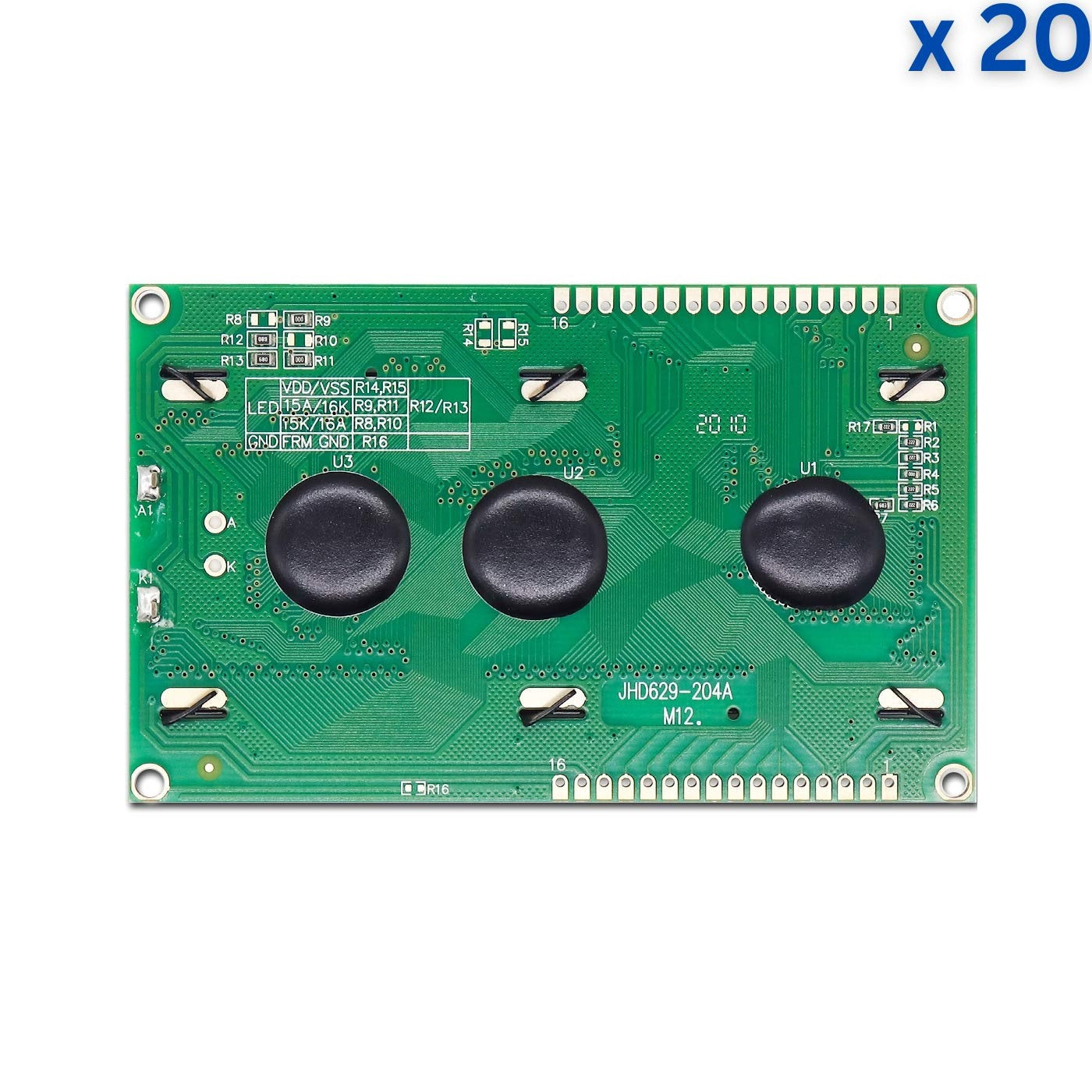

20 x 4 Blue Color LCD Display (JHD204)

SKU: 0000016

Quantity: 1 Pcs
Sale price Rs. 559.32 (excl.18% GST)
Rs. 660.00


This is a 20x4 LCD display made by JHD. It is based on the HD44870 display controller which makes it is easy to interface this LCD with most microcontrollers. It's extreme popularity ensures that no matter which microcontroller platform you are using, you will definitely find ready libraries to use this LCD. In this LCD each character is displayed in a 5×8 pixel matrix. The 20x4 intelligent alphanumeric dot matrix display is capable of displaying 256 different characters and symbols.

Technical Specification:

  • Color of Display : Yellow/Green
  • Color of Character : Black
  • Size : 20 x 4 (20 character x 4 rows)
  • Input Voltage : +5V
  • Supply Current : 8mA
  • Board Dimensions : 98mm x 60mm (LxB)
  • Display Dimensions : 76mm x 25mm (LxB)


  • 20 characters wide, 4 rows
  • Black text on the yellow/green background
  • Single LED backlight included can be dimmed easily with a resistor or PWM.
  • Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)


  • Electronic equipment's
  • Medical equipment's
  • Fax machines
  • Laser printers
  • Industrial test equipment
  • Networking equipment
  • Smart homes
