Description

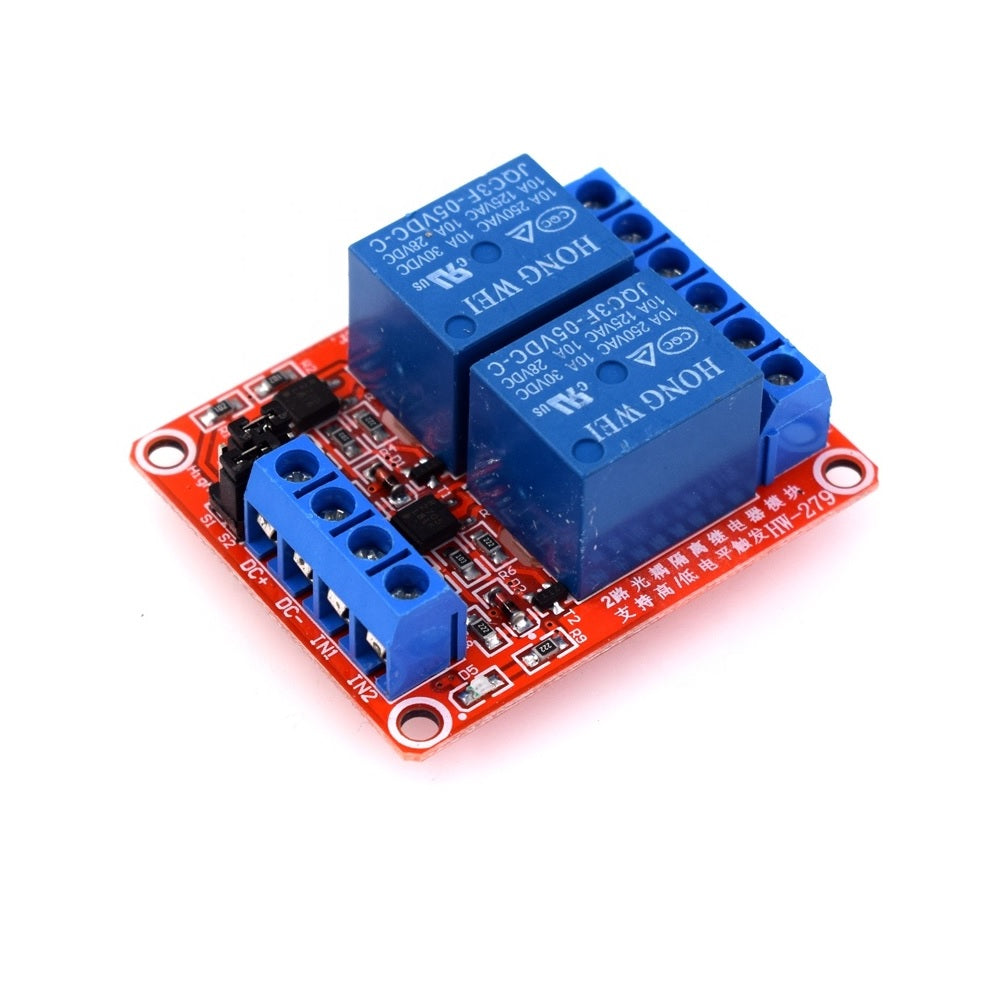

The module has two SRD-05 relays with the coil powered with the voltage of 5 V with optical isolation of the input and mounting holes. The system allows you to control actuators using the microcontroller ports or any development kit using the low or high status - selected by jumper.
Technical Specification:
- VCC supply voltage: 5V
- Control signal: 3V
- Coil voltage: 5V
- Maximum voltage of contacts: 250V AC, 110 VDC
- Maximum current: 10a
- Diameter of mounting holes: 3mm
- Connectors: screw ARK connectors
- Board sizes: 50mm*41mm (L*W)
Features:
- Fault-tolerant design, even if the control line is broken, the relay will not operate
- The power indicator (green), the relay status indicator (red)
- The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
Applications:
- Can be used as driver of lighting
- Can be used as driver of actuators
- Switch for electric devices, including motors
