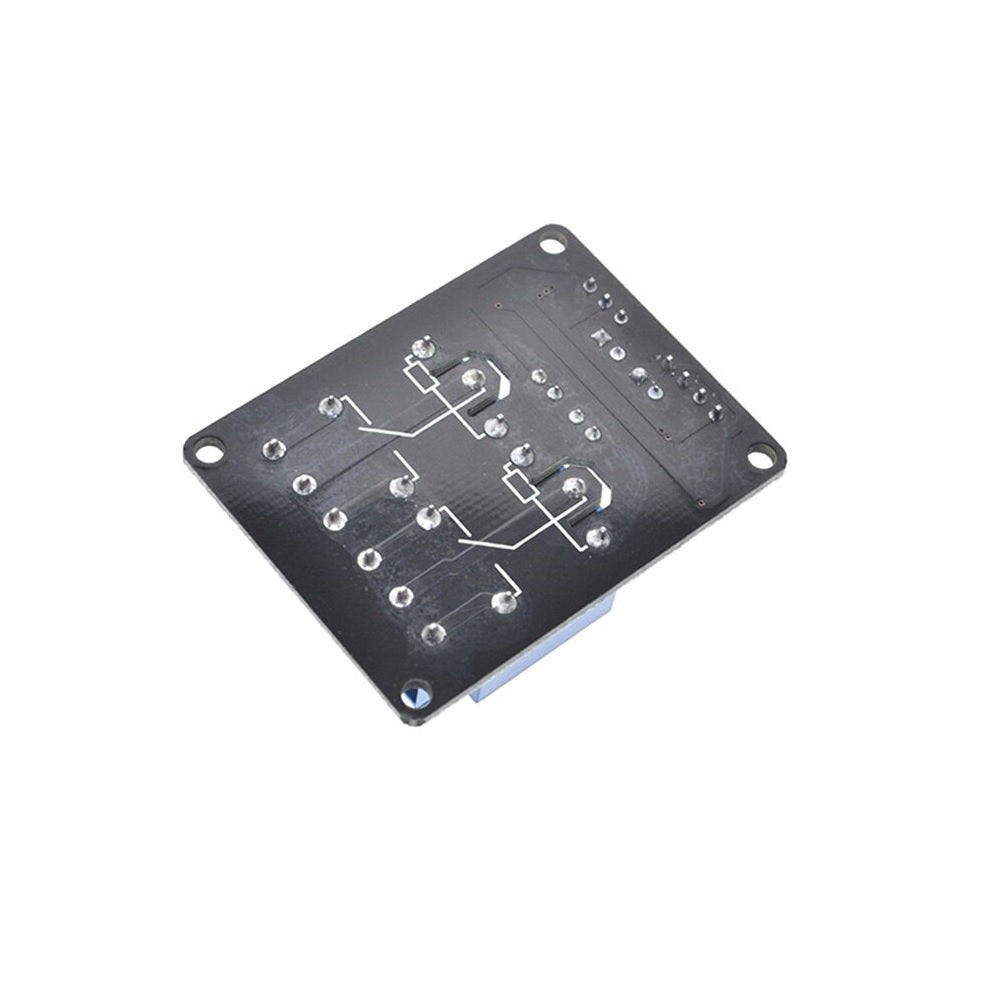

2 Channel 5V Relay Module with Optocoupler

SKU: VM221

Send Inquiry

Description

Relays are important part of any electrical and electronic circuits. We use relays in control applications, switching applications, circuit protection applications and load transfer applications. Relays are also used to provide electrical isolation between two circuits. This 2-channel Relay module comes with Optocoupler protection is an active low relay module which means that the relay will conduct when the input signal falls below 2V and if it is above 2V then the relay is turned off you can also make it an active module by changing the jumper position on the power module. It can be controlled directly with both 3.3V and 5V microcontrollers easily and dual channel enables you to control two applications at a same time which can come very handy if you want to control the direction of rotation of DC motor with your relay.

Technical Specification:

  • Product Type: 2-Channel relay module
  • Maximum output of relay: AC250V 10A and DC30V 10A
  • Number of Relays: 2
  • Control signal type: TTL level
  • Input voltage: 5V
  • Dimensions: 140 mm x 55 mm x 19.3 mm(L*W*H)

Features:

  • Low Level Trigger Relay Module
  • Two separate LEDs for On/Off indication of the Relay
  • Two separate LEDs for On/Off indication of the Relay
  • Back EMF protection
  • Back EMF protection 2 LEDs to indicate when relays are ON
  • Works with logic level signals from 3.3V or 5V devices
  • Opto isolation circuitry
  • Module with diode current protection, short response time

Applications:

  • Home automation
  • Robotics Control
  • Control doors and windows via windows system
