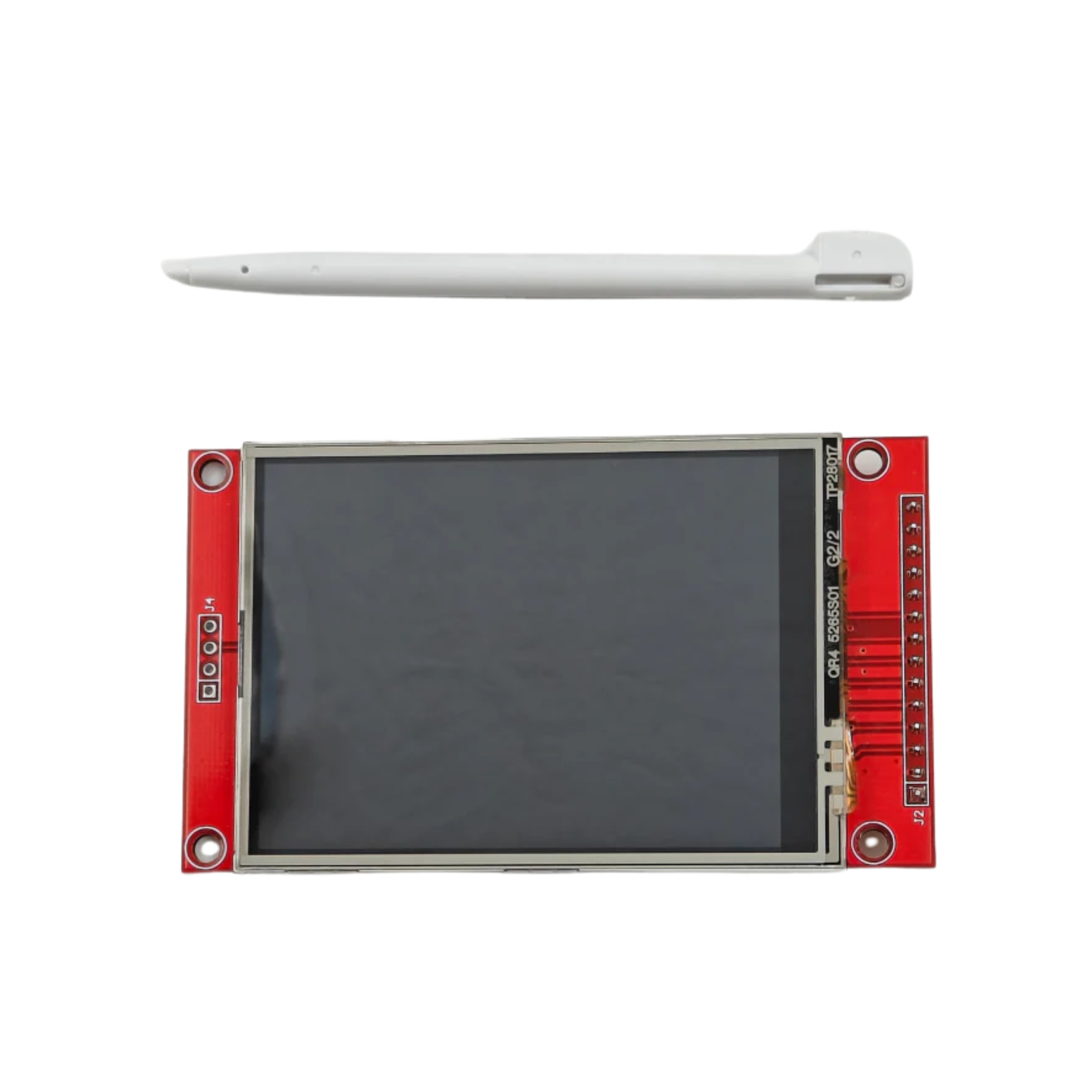

2.8 Inch SPI Touch Screen Display Module – TFT Display 240x320

The 2.8 Inch SPI Touch Screen Display Module is a compact TFT LCD display designed for embedded systems, Arduino, Raspberry Pi, ESP8266, ESP32, STM32, and other microcontroller platforms. It features a 240×320 pixel color display with touch screen capability, making it suitable for graphical user interfaces, monitoring systems, and interactive electronic projects.

The module communicates through the SPI interface, reducing the number of GPIO pins required while providing fast data transfer. It also includes an onboard SD card slot for storing images, fonts, and multimedia data.

Technical Specifications:

• Display Type: TFT LCD Touch Screen

• Screen Size: 2.8 inches

• Resolution: 240 × 320 pixels

• Interface Type: SPI (Serial Peripheral Interface)

• Touch Type: Resistive touch panel

• Controller IC: Commonly ILI9341 / equivalent

• Operating Voltage: 3.3V to 5V DC

• Display Colors: 65K RGB colors

• Communication Pins: SPI control and touch interface pins


Features:

• 2.8-inch full-color TFT LCD display

• 240×320 high-resolution graphics output

• Integrated resistive touch screen

• SPI communication for easy interfacing

• Supports Arduino, Raspberry Pi, ESP32, and STM32

• Built-in micro SD card slot for storage expansion

• Low power consumption design

• Fast graphical refresh performance

• Suitable for GUI and HMI applications

• Compact and lightweight module

Applications:

• Embedded system graphical interfaces

• Portable measurement instruments

• IoT display systems

• Touch-based control panels

• Arduino and Raspberry Pi projects

• Industrial monitoring displays

• Smart home control systems

• Data visualization applications

• DIY electronics and robotics

• Educational and research projects
