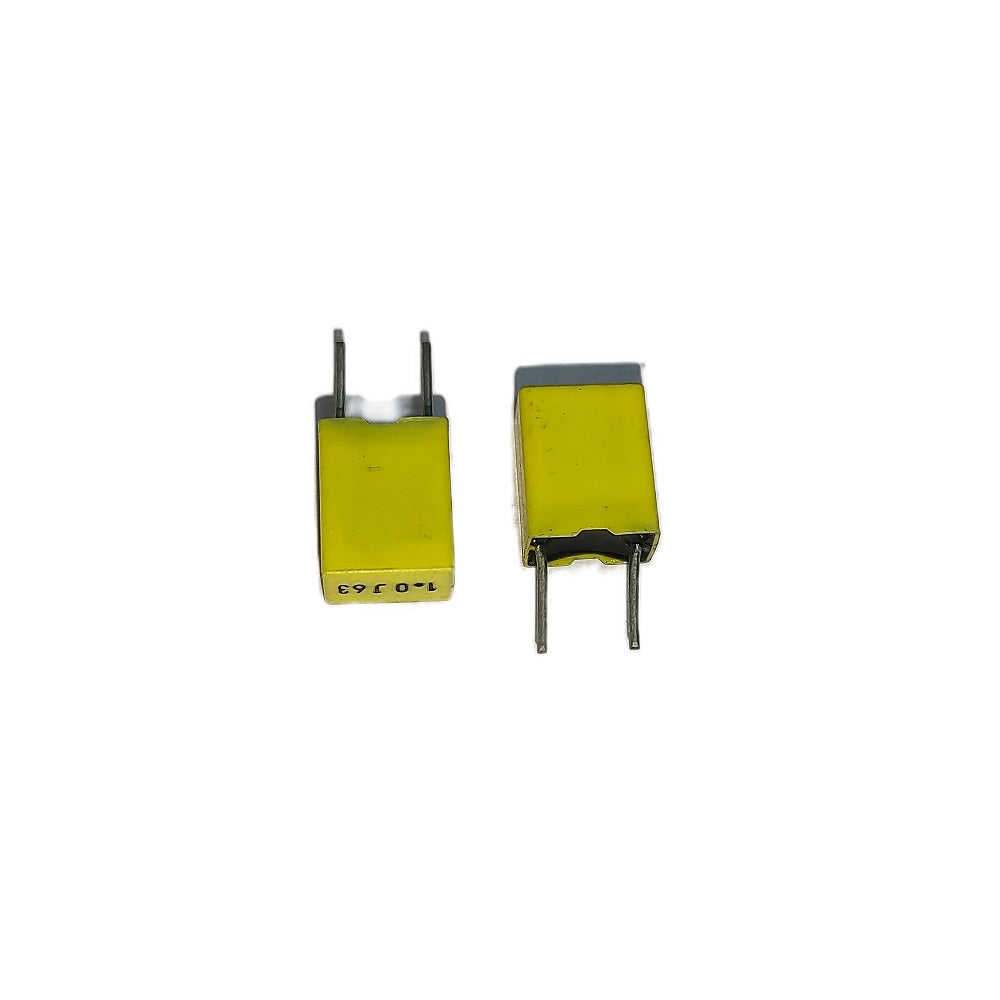

Description
Box capacitors i.e polyester capacitors are widely used because of their superior characteristics. This capacitor type is not polarized, which makes them suitable for AC signal and power use. Box capacitors can be made with very high precision capacitance values, and they can retain that value longer time.
Technical Specification:
- Type : Box Capacitors
- Capacitance: 1uF (105)
- Voltage Rating: 100V
- Dielectric Type: Double Metallized PP
- Capacitance Tolerance: ± 10%
- Capacitor Case Style: Radial Box
- Capacitor Terminals: Radial Leaded
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
Features:
- Smaller size
- Self-healing property
- Excellent electrical characteristics
- Flame retardant epoxy resin coating
- RoHS directive compliant
- Non-inductive construction
- High-moisture resistance
- Good solderability
Pin Description:
Applications:
- Blocking
- Bypassing
- Filtering
- Coupling and decoupling
- Interference suppression in low voltage applications
- Lowpulse operations
- UPS
- SMPS
- Lighting Products
- House Hold Appliances
- Automotive Products
