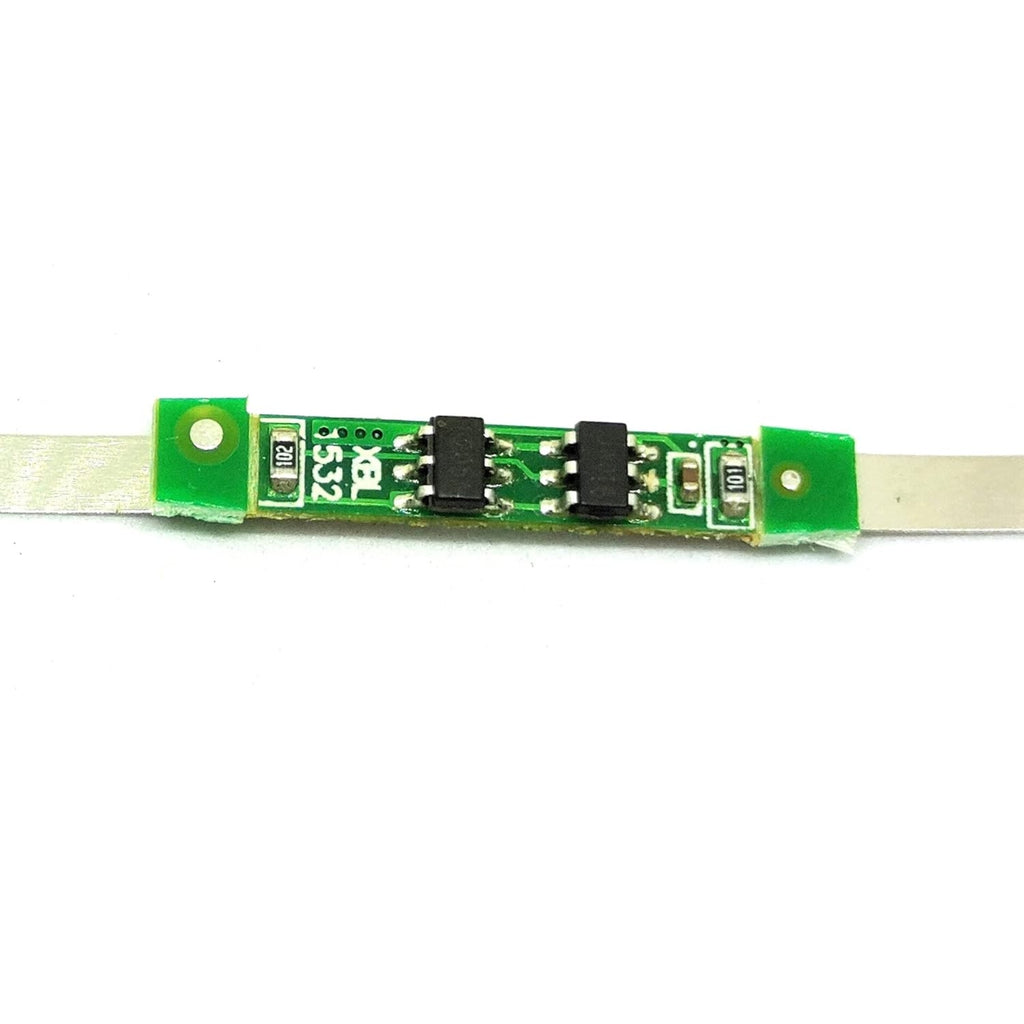

1S 3.7V 2A 1MOS BMS Li-ion 18650 Battery Protection Board

The 1S/2A BMS module is a compact protection board designed for single-cell (1S) lithium-ion or lithium-polymer batteries. It provides essential safety functions such as overcharge, over-discharge, overcurrent, and short-circuit protection, ensuring safe operation and extended battery life. Its slim, lightweight design makes it ideal for space-constrained battery packs.

Technical Specifications:

• Battery Configuration: 1S (single cell)

• Nominal Battery Voltage: 3.7 V

• Maximum Charge Voltage: 4.2 V

• Maximum Continuous Current: 2 A

• Protection IC Type: Dedicated Li-ion protection IC (with dual MOSFETs)

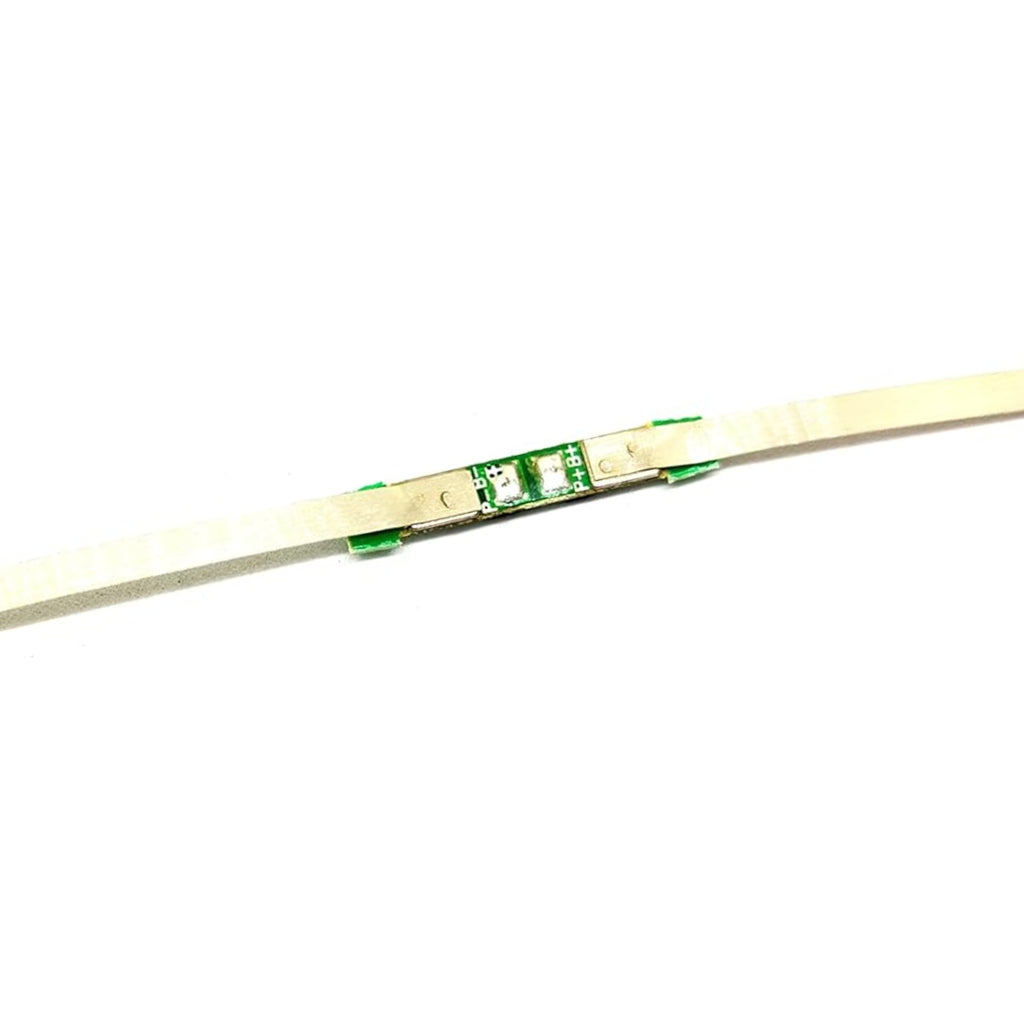

• Connection Pads: B+, B−, P+, P−

• PCB Type: Ultra-thin strip board

 Features:

• Small and lightweight design

• Low power consumption

• Reliable dual-MOSFET protection

• Suitable for Li-ion and Li-Po cells

• Easy integration into custom battery packs

Applications:

• DIY lithium battery packs

• Portable electronics

• Bluetooth speakers and wearables

• Power banks (low-current)

• IoT and embedded battery-powered projects
