TP4056 1A Li-ion lithium Battery Charging Module – Type C

SKU: VM01071

Price:
Sale price Rs. 16.95
(excl.18% GST)
Rs. 20.00

Description

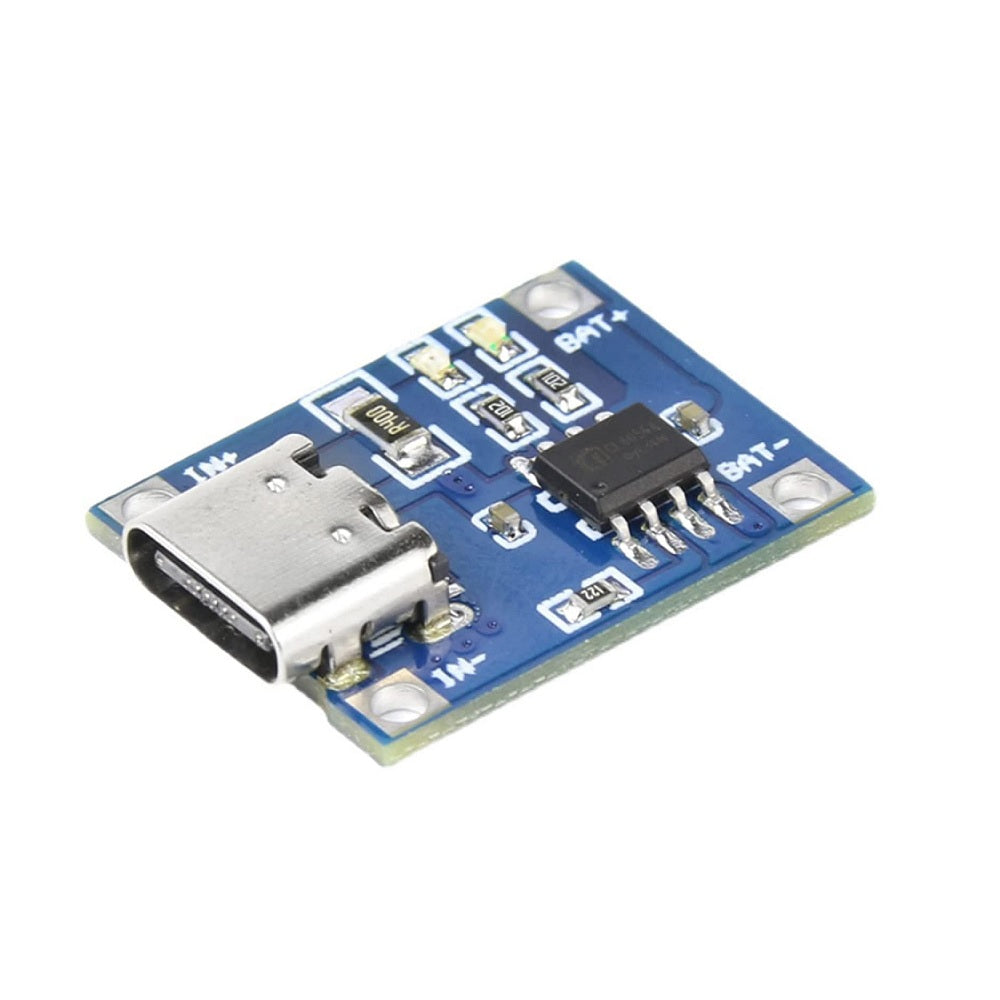

TP4056 1A Li-ion lithium Battery Charging Module – Type C

The TP4056 Type-C USB Charging Module is a linear charger designed for 1-cell 3.7V lithium batteries using constant-current/constant-voltage (CC/CV) charging. It features a USB-C input, onboard charging status LEDs, and battery protection circuitry (optional based on module version).

Technical Specifications:

  • Input Voltage: 4.5V – 5.5V (via USB-C or IN+ & IN– pads)
  • Charging Current: Default: ~1A (Adjustable via resistor)
  • Battery Type: Single-cell 3.7V Li-ion/LiPo
  • Charge Cut-off Voltage: 4.2V ± 1%
  • Battery Protection: Available in protected version (overcharge, overdischarge, short circuit)
  • Status Indicators: Red = Charging, Blue = Fully charged

Pinouts:

TP4056 Pin

Function

IN+

5V Input Positive (if not using USB-C)

IN–

Input Ground

BAT+

Battery Positive Terminal

BAT–

Battery Ground

OUT+

Output Positive (same as BAT+) (on protected version)

OUT–

Output Ground (same as BAT–) (on protected version)

Connection with Battery and Adapter:

The TP4056 Type-C USB module is a hardware-only lithium battery charging module — it does not require any code to operate.

LED Color

Status

Red

Charging

Blue

Fully Charged
