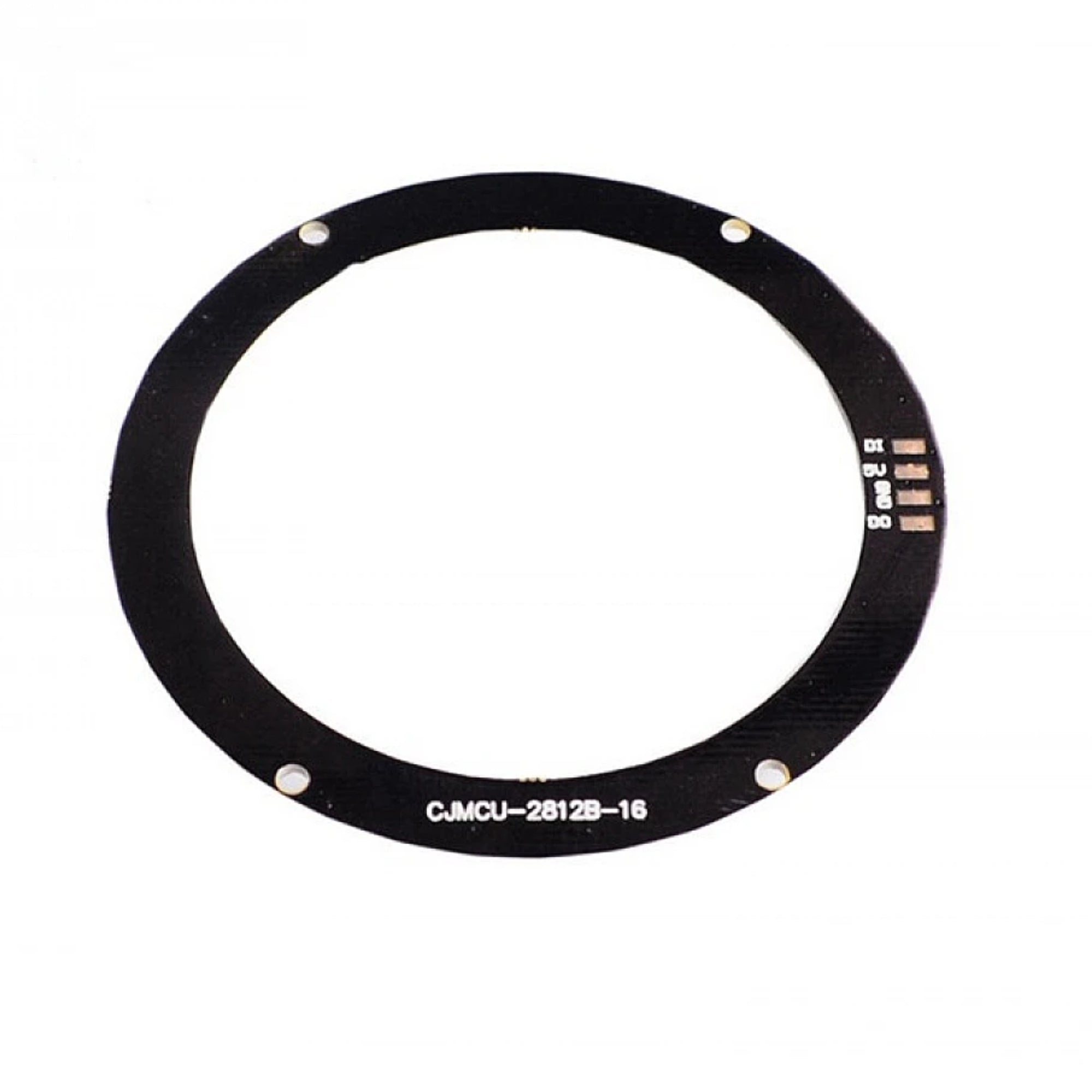

16 x WS2812 Round RGB LED Module

The 16× WS2812 Round RGB LED Module is a circular addressable LED ring made using WS2812 (WS2812B) smart RGB LEDs. Each LED has a built-in driver IC, enabling individual control of color and brightness through a single data line. Its round shape is ideal for radial lighting effects, visual indicators, and decorative illumination in electronics and DIY projects.

Technical Specifications:

• LED Type: WS2812 / WS2812B
• Number of LEDs: 16
• Operating Voltage: 5 V DC
• Control Interface: Single-wire serial data (DIN / DOUT)
• Color Depth: 24-bit (8-bit Red, Green, Blue per LED)
• PWM Resolution: 256 levels per color
• Maximum Current: ~60 mA per LED at full white (≈960 mA total)
• PCB Shape: Circular ring
• Mounting: Multiple mounting holes
• Signal Direction: Marked DIN → DOUT
• Controller Compatibility: Arduino, ESP32, ESP8266, Raspberry Pi (logic-level shifting may be required)

Features:

• Individually addressable RGB LEDs
• Single data line control simplifies wiring
• Smooth color mixing and animation effects
• Compact circular design for uniform lighting
• Daisy-chain support with other WS2812 modules
• Extensive library support (NeoPixel, FastLED)
• Minimal external components required

Applications:

• Decorative and ambient lighting
• LED clocks and circular displays
• Robotics status and feedback indicator
• Wearable electronics
• IoT and smart home projects
• Gaming and PC mod lighting
• Educational, training, and prototyping projects
