16 x 2 Blue Color LCD Display

SKU: 0000006

Quantity: 1 Pcs
Price:
Sale price Rs. 144.07
(excl.18% GST)
Rs. 170.00

Description

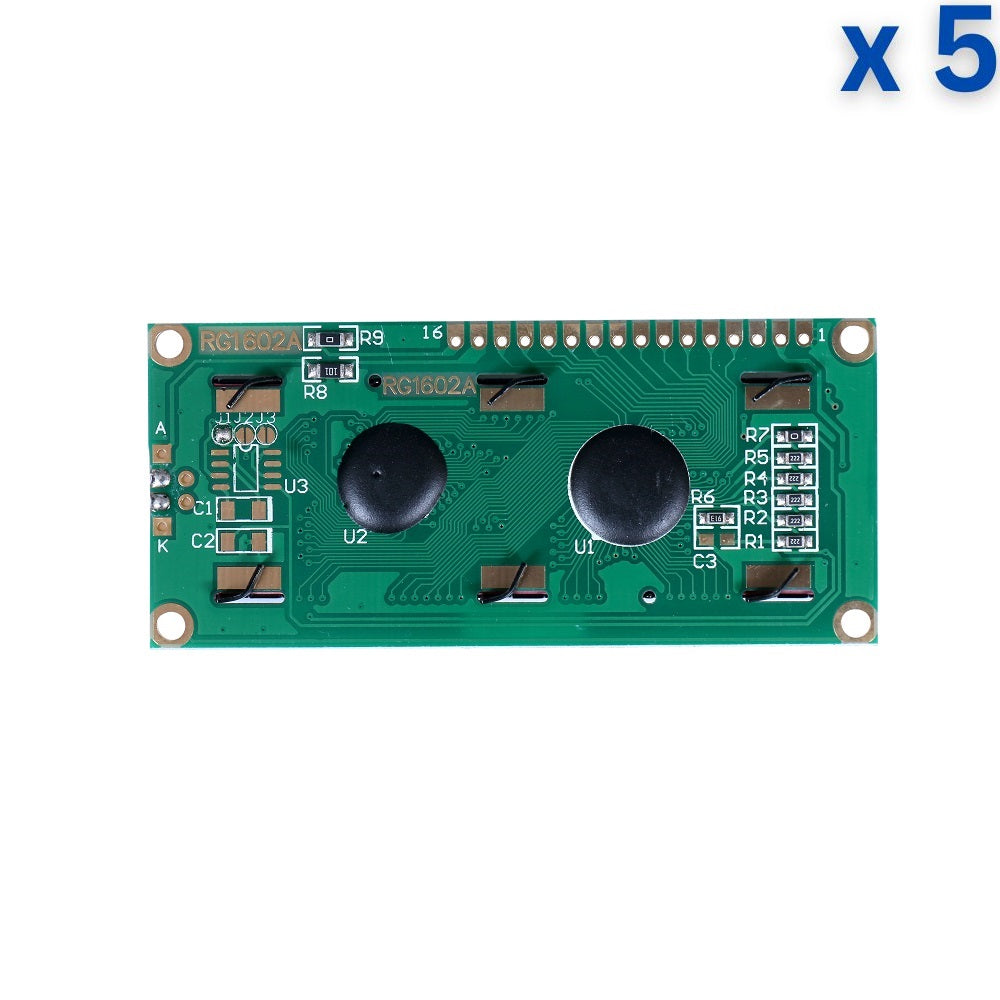

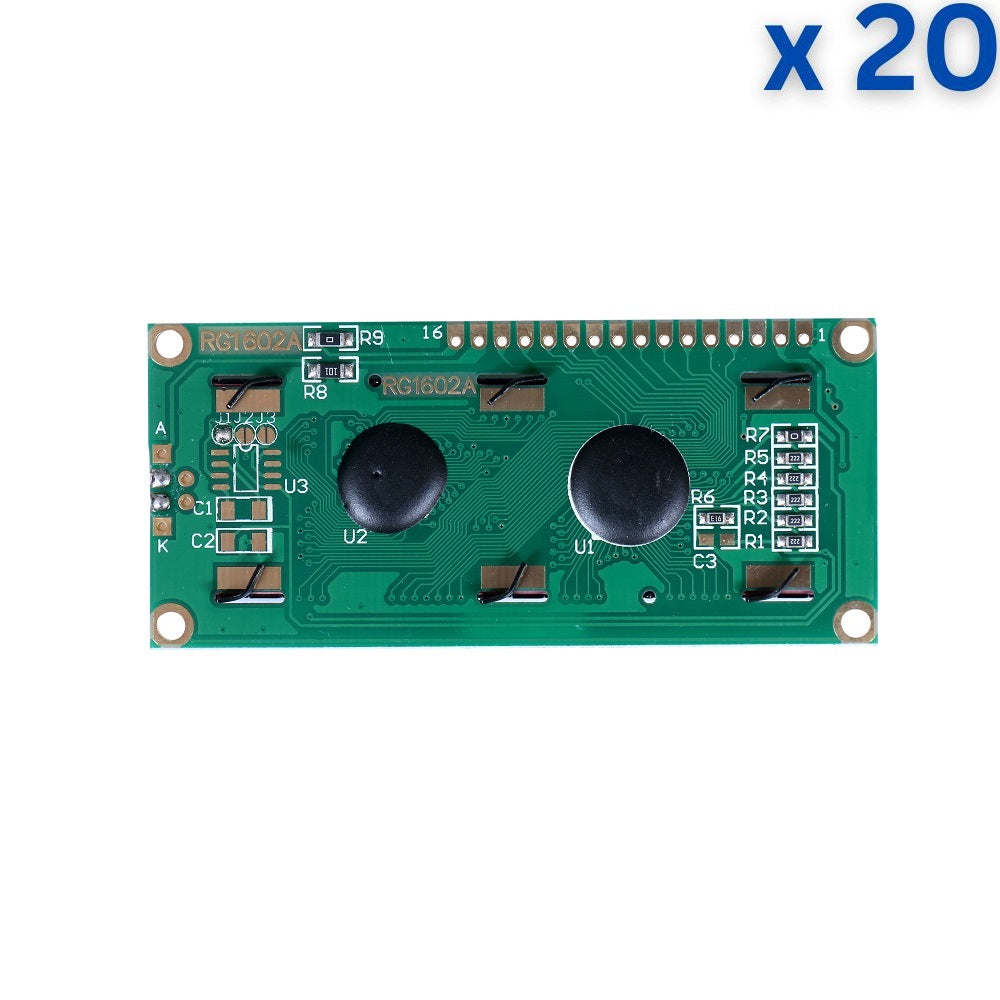

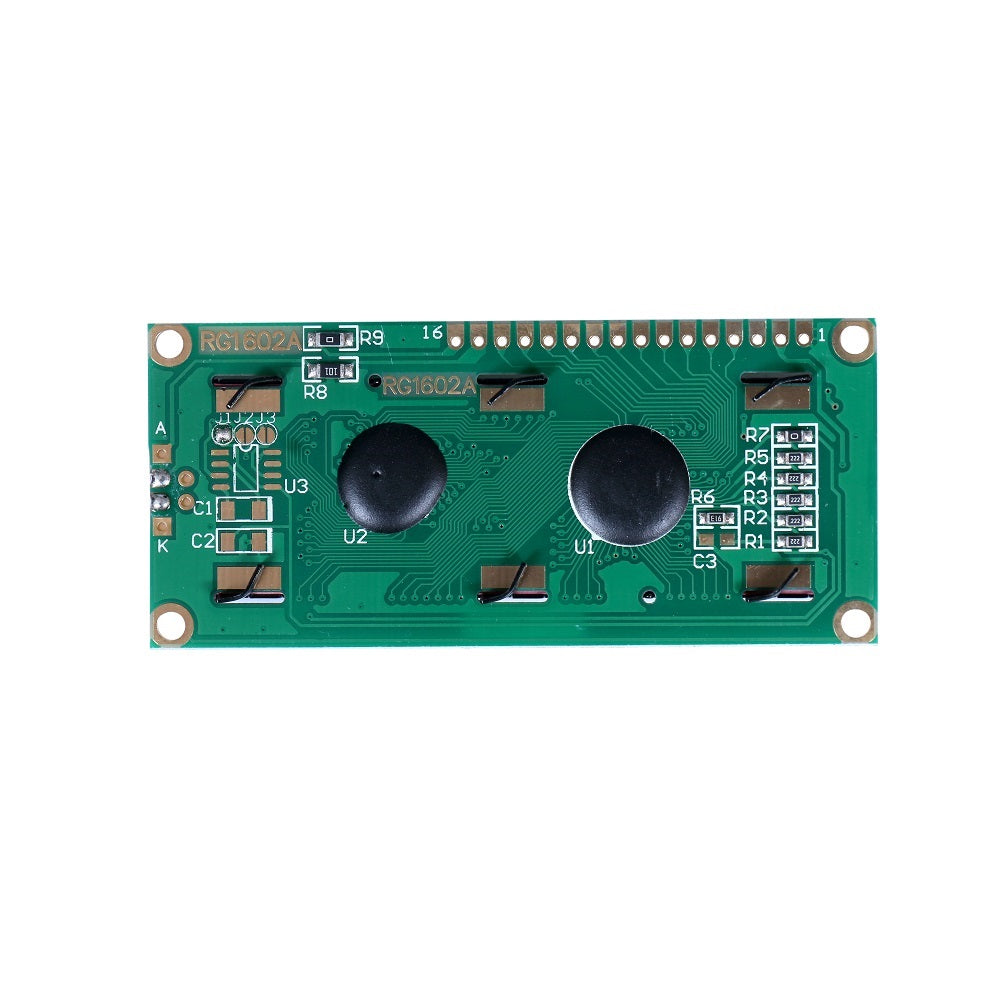

This is a high quality 16 x 2 line intelligent display module, with back lighting, works with almost any microcontroller. It is based on the HD44870 display controller hence it is easy to interface with most micro controllers. It works of 3.3v and has a blue back light which can be switched on and off as desired. The contrast of the screen can also be controlled by varying the voltage at the contrast control pin (pin 3).

Technical Specification:

  • Color of Display : Blue
  • Color of Character : White
  • Size : 16 x 2 (16 character x 2 rows)
  • Input Voltage : +5V
  • Supply Current : 1.5mA
  • Display Dimensions : 80mm x 36mm (LxB)

Features:

  • 16 characters wide, 2 rows
  • 5x7 Dot Matrix Character Cursor
  • 4-bit or 8-bit MPU Interface
  • Single LED backlight included can be dimmed easily with a resistor or PWM

 Applications:

  • Electronic equipment's
  • Medical equipment's
  • Smart homes
