Description

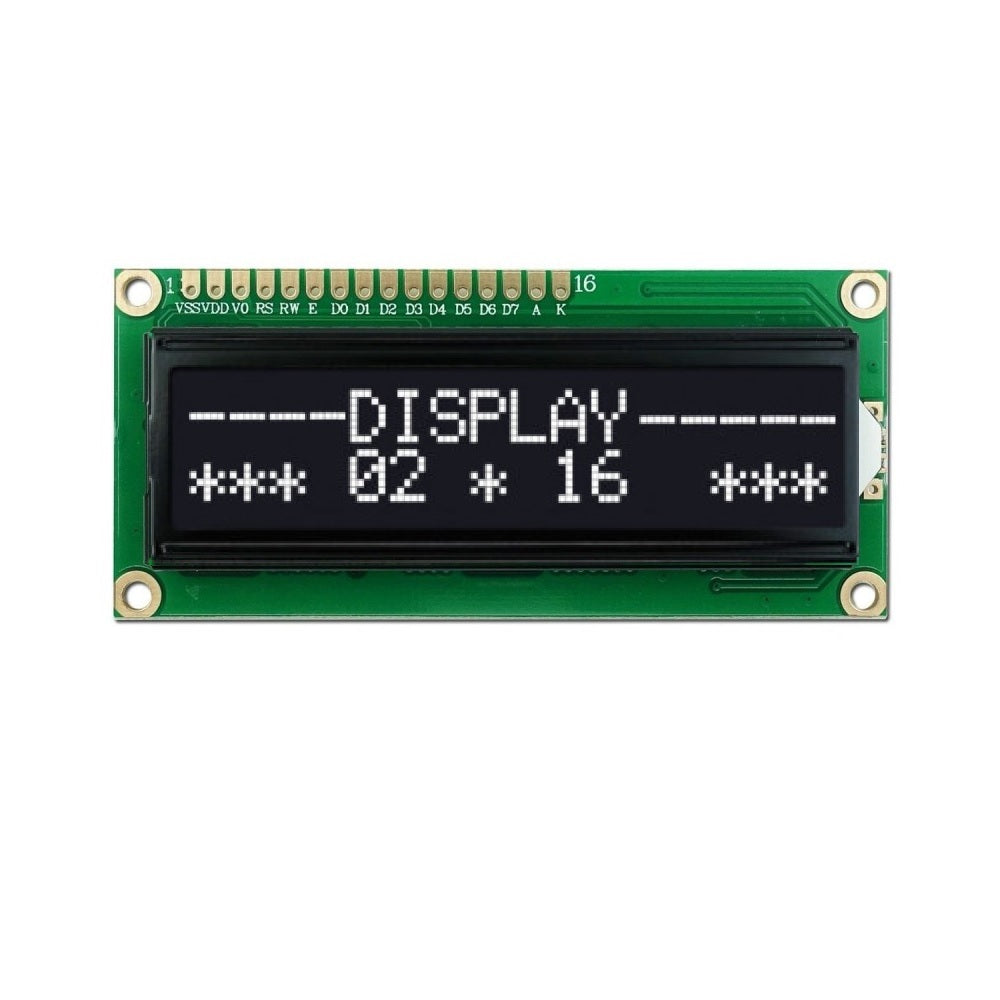

This is a high quality 16 x 2 line intelligent display module, with back lighting, works with almost any microcontroller. It is based on the HD44870 display controller hence it is easy to interface with most micro controllers.
Technical Specification:
- Color of Display : Black
- Color of Character : White
- Size : 16 x 2 (16 character x 2 rows)
- Input Voltage : +5V
- Supply Current : 1.5mA
- Display Dimensions : 80mm x 36mm (LxB)
Features:
- 16 characters wide, 2 rows
- 5x7 Dot Matrix Character Cursor
- 4-bit or 8-bit MPU Interface
- Single LED backlight included can be dimmed easily with a resistor or PWM
Applications:
- Electronic equipment's
- Medical equipment's
- Smart homes
