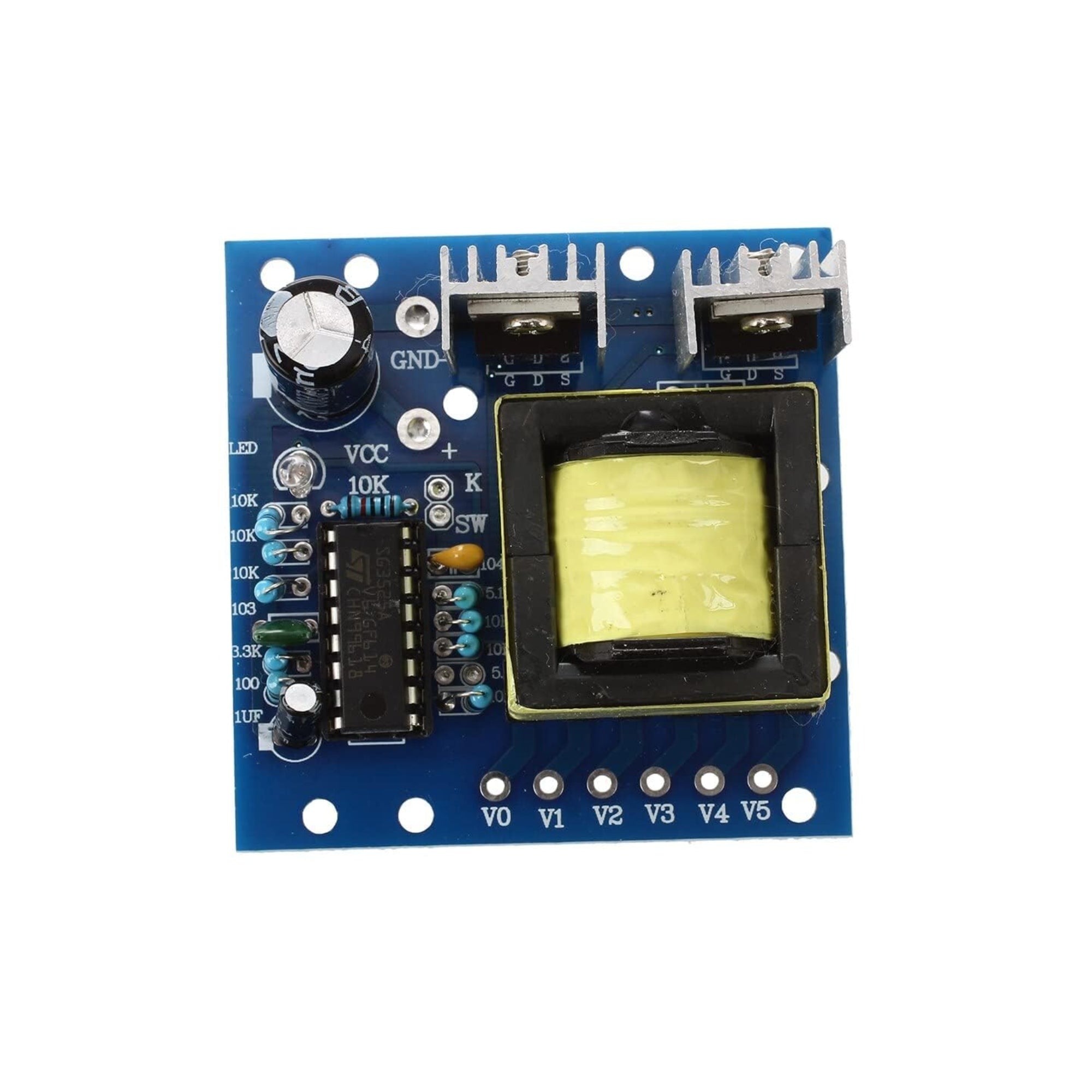

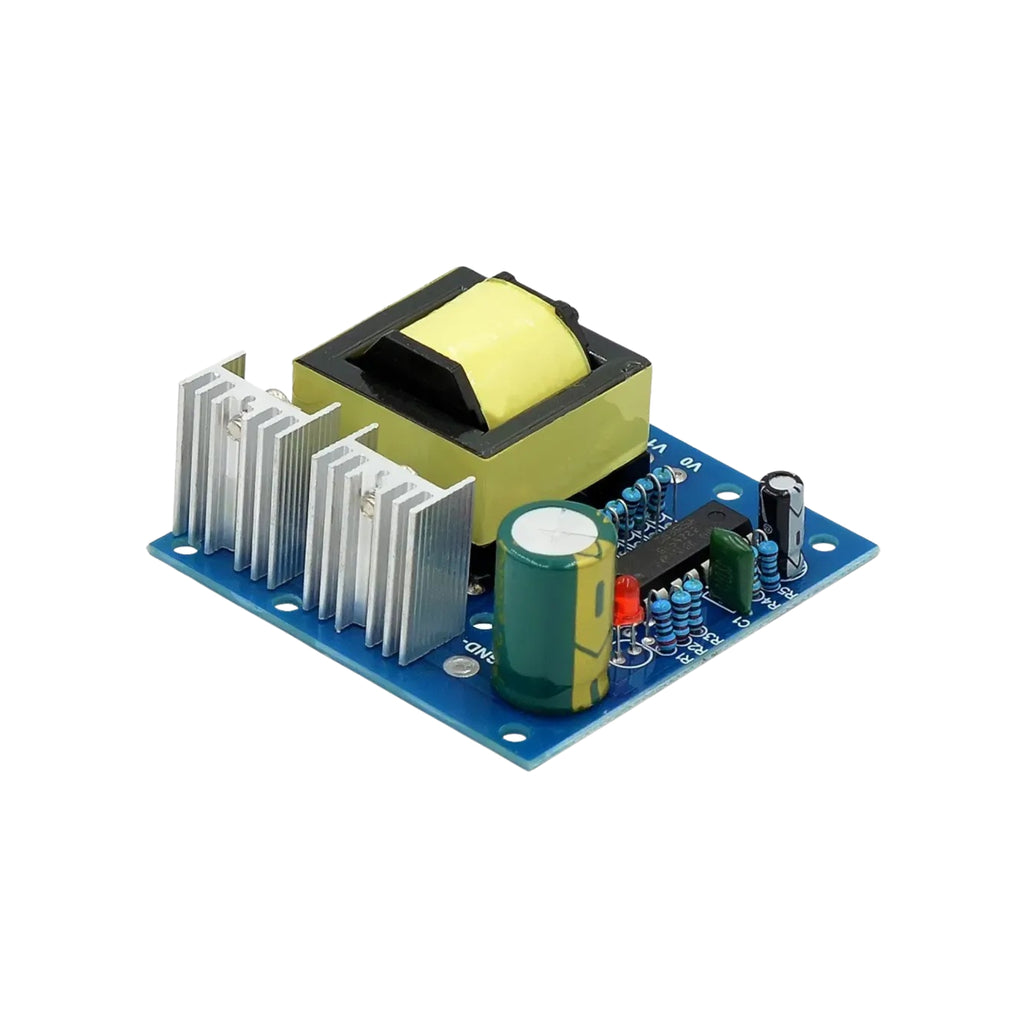

150W DC12V AC220V Battery Booster Inverter Module

The 150W DC12V to AC220V Battery Boost Inverter Module is a compact high-frequency power inverter board designed to convert 12V DC input from a battery into 220V AC output. The module uses a transformer-based switching circuit with MOSFET power transistors and oscillator control ICs to generate AC voltage suitable for low-power electrical devices.

This inverter module is commonly used in DIY power systems, emergency backup supplies, portable inverters, educational electronics projects, and small appliance applications.

Technical Specifications:

• Input Voltage: 12V DC

• Output Voltage: 220V AC

• Rated Output Power: 150W

• Output Waveform: Modified Square Wave

• Frequency: 50Hz / 60Hz

Features:

• Compact and lightweight PCB structure

• Aluminum heatsinks for efficient cooling

• Dual MOSFET switching configuration

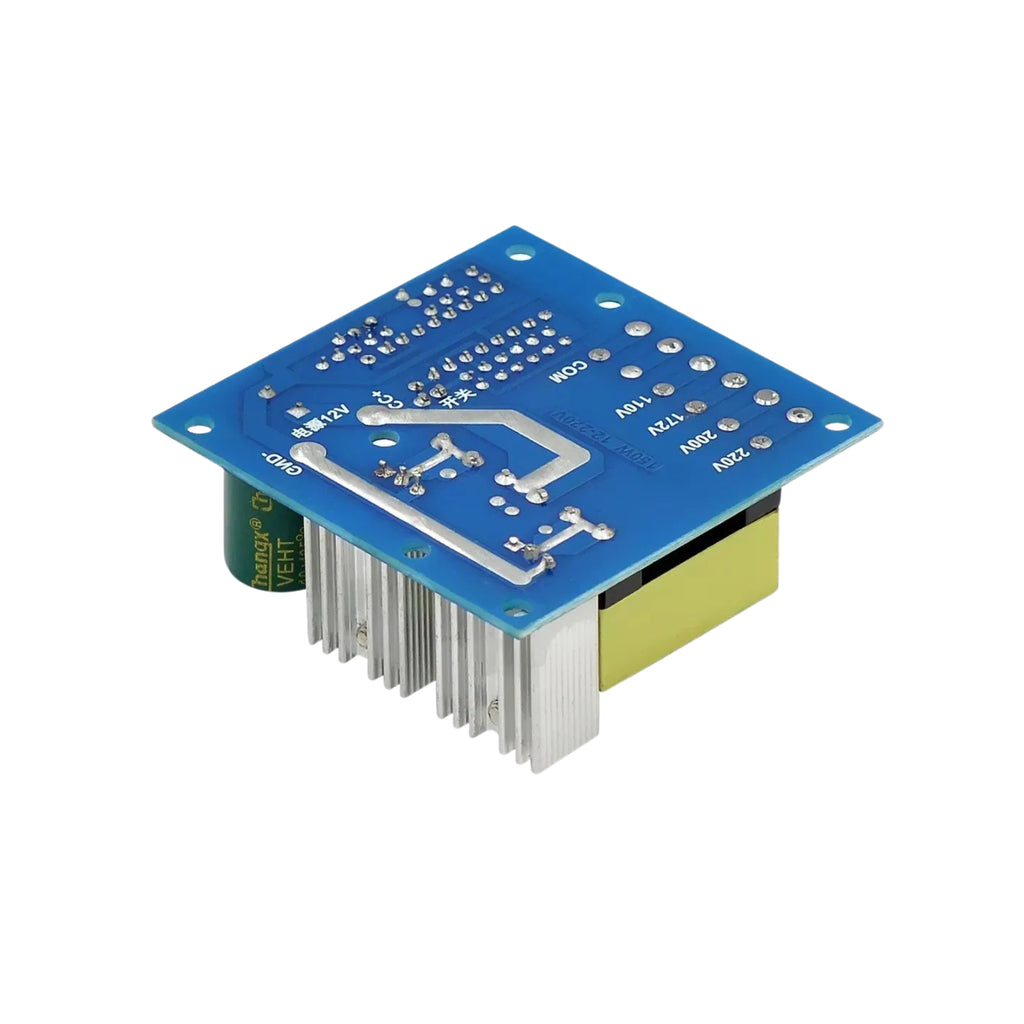

• Multiple AC output voltage taps available

• Easy wiring and installation process

Applications:

• Emergency backup power systems

• Portable battery inverter projects

• Small lighting and fan operation

• Solar and automotive power applications

• Educational and DIY electronics projects
