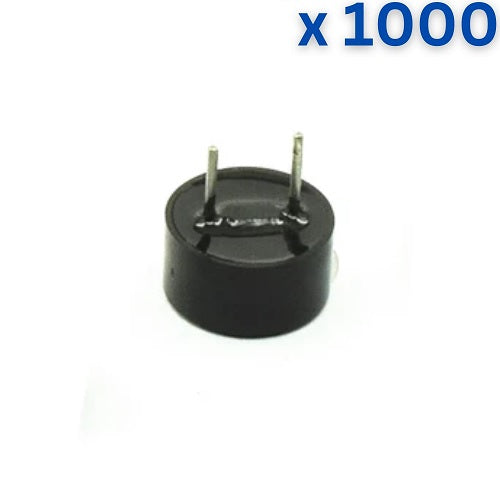

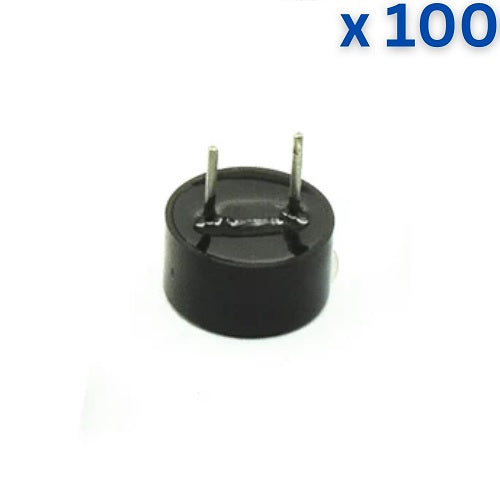

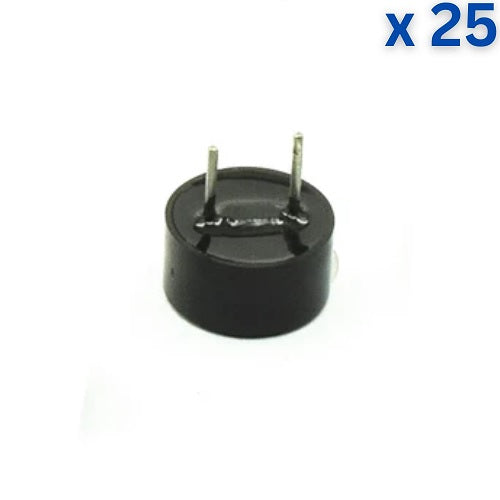

10mm Continuous Buzzer PCB Mount

SKU: VC515

Price:
Sale price Rs. 12.71 (excl.18% GST)
Rs. 15.00

Description

A buzzer is a small yet efficient component to add sound features to our project/system. It is very small and compact 2-pin structure hence can be easily used onbreadboard, Perf Board and even on PCBs which makes this a widely used component in most electronic applications. There are two types of buzzers that are commonly available. The one shown here is a simple buzzer which when powered will make a Continuous Beeeeeeppp. Sound due to the internal oscillating circuit present inside it. But, the one shown here is most widely used because it can be customised with help of other circuits to fit easily in our application

Technical Specification:

  • Minimum sound level: 85db
  • Oscillation frequency: 4KHz ± 500Hz
  • Current consumption: Maximum 15mA
  • Operating voltage: 1.5 to 27 VDC
  • Tone: Continuous
  • Mounting: PCB Type
  • Wire/Lead length: 8mm lead
  • Height: 16.5mm
  • Diameter: 32mm
  • Pitch: 17.5mm
  • Operating temperature range: 20 to 50 °C
  • Storage temperature range: 30 to 60 °C

Features:

  • Simply Compatible
  • Frequency Response is Good
  • Size is small
  • Energy Consumption is less
  • The Range of Voltage usage is Large

 Applications:

  • Electrical alarms
  • Educational purposes
  • Security applications
  • Electronic Metronomes
  • Household applications
