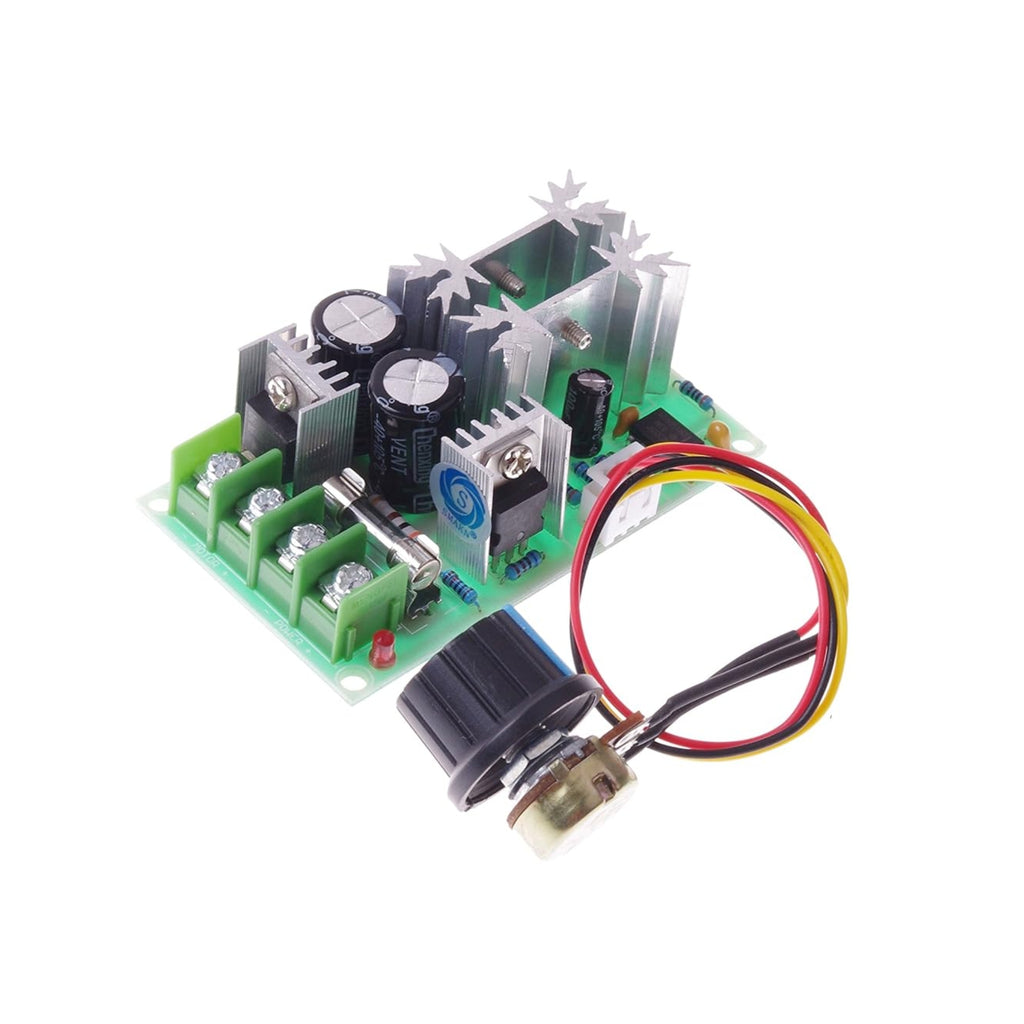

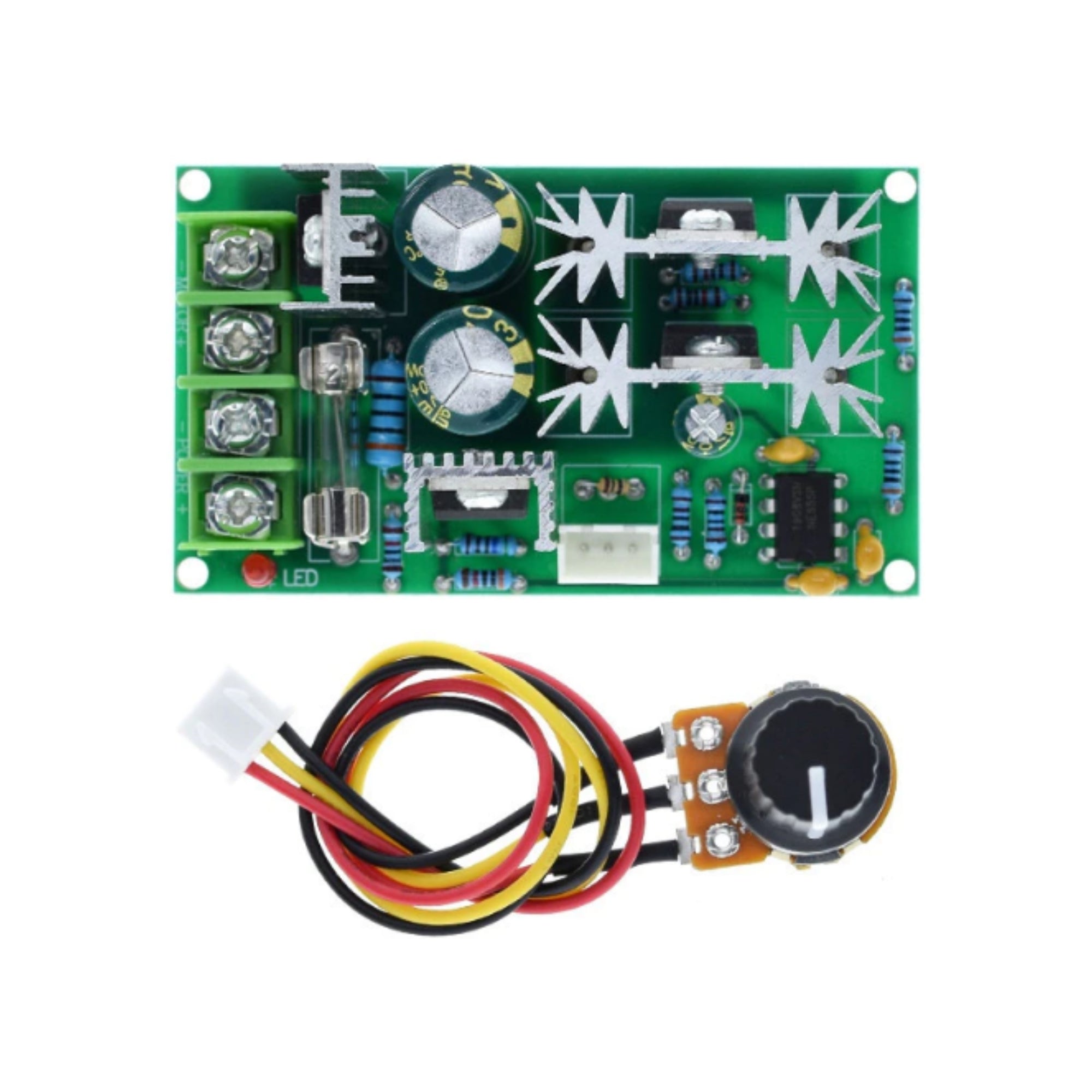

10-60V 20A PWM Motor Controller

The 10–60V 20A PWM Motor Controller is a high-power DC motor speed control module designed to regulate motor speed smoothly and efficiently using pulse-width modulation technology. It supports a wide DC voltage range and high current capacity, making it suitable for industrial, DIY, and automation projects. The controller includes an external potentiometer for easy manual speed adjustment and robust heat dissipation for stable long-term operation.

Technical Specifications:

• Input Voltage Range: 10 V to 60 V DC
• Maximum Current: 20 A continuous
• Control Method: PWM (Pulse Width Modulation)
• Speed Control Range: 0% to 100%
• Efficiency: Up to 95%
• Control Interface: External potentiometer (included)
• Protection: Over-current and thermal protection (design dependent)
• Cooling: Aluminum heat sinks
• Motor Type: Brushed DC motors

Features:

• Wide operating voltage range
• High current handling capability
• Smooth and precise speed control
• High efficiency with minimal power loss
• External knob for easy speed adjustment
• Heavy-duty components with effective heat dissipation
• Compact and easy-to-install design

Applications:

• DC motor speed control systems
• Electric scooters and small EV projects
• Industrial automation equipment
• Robotics and DIY motor control projects
• Fans, pumps, conveyors, and tools
