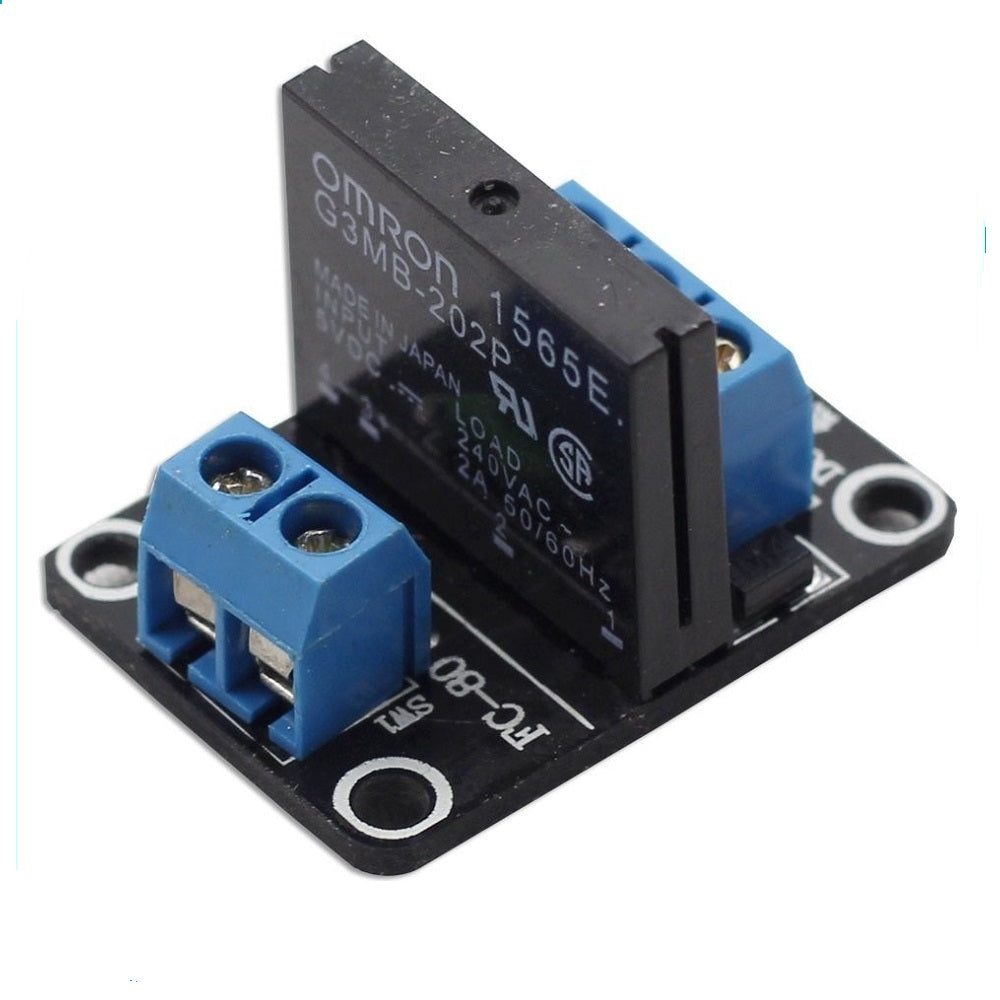

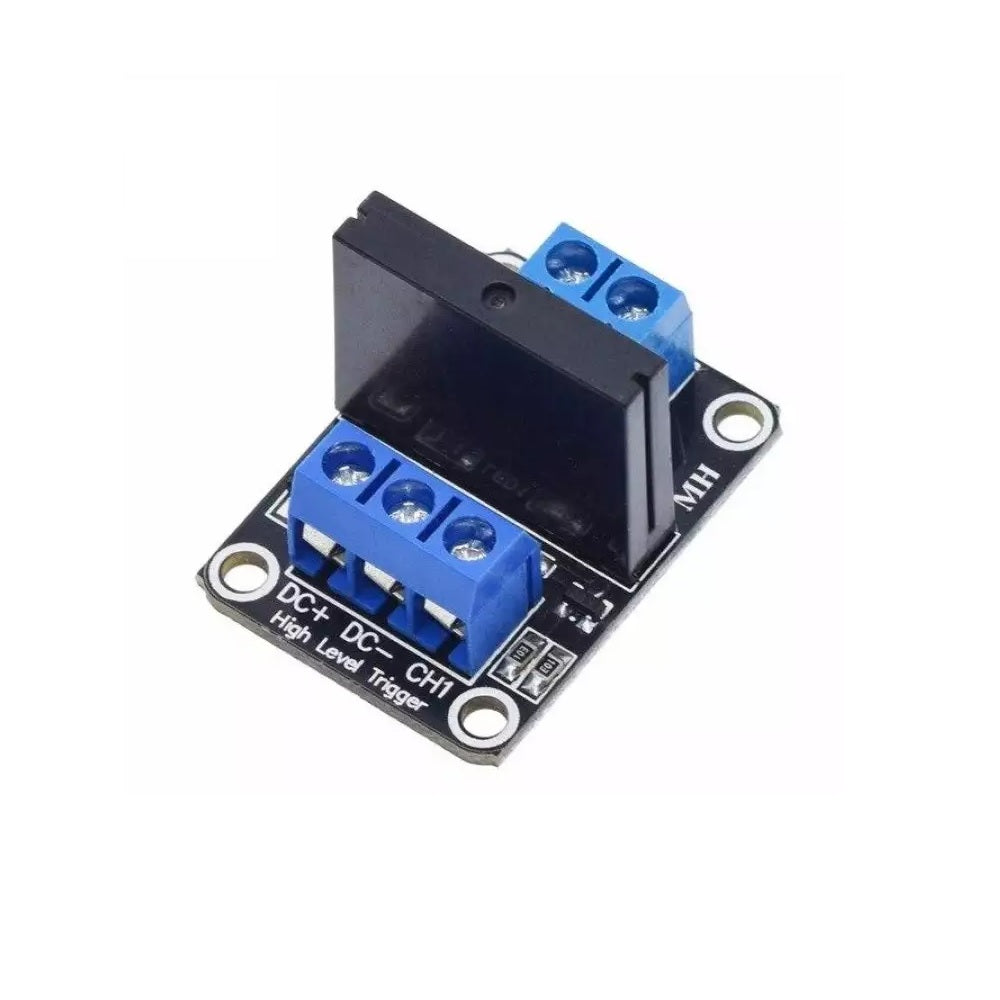

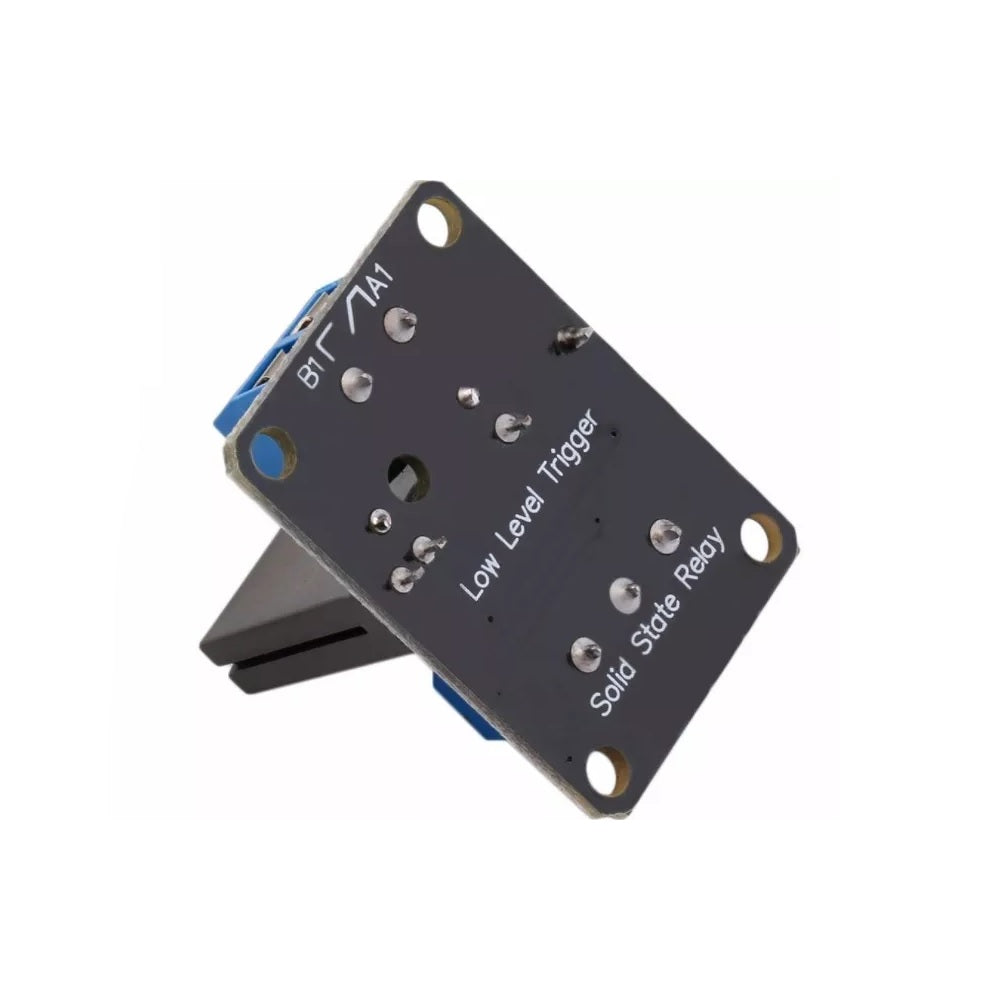

1 Channel 5V SSR G3MB-202P 2A Solid State Relay Module

SKU: VM387

Send Inquiry

Description

A solid state relay (SSR) is an electronic switching device that switches on or off when an external voltage (AC or DC) is applied across its control terminals. It serves the same function as an electromechanical relay, but has no moving parts and therefore results in a longer operational lifetime. SSRs consist of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC loads.

This 5V 1 Channel Solid State Relay Module is capable of switching AC voltages between 100 and 240V at up to a 2A current. The module can be controlled from a 5V digital source such as an Arduino microcontroller, 8051, PIC, etc.

Technical Specification:

  • Voltage: 5V
  • Working Current: 5mA
  • Trigger voltage(V): 0V to 1.5V
  • Trigger current(mA): 2mA
  • Load: 2A @240V AC
  • Size: 25mm*34mmm*25mm (L*W*H)

Features:

  • Compact size
  • Totally silent operation
  • Led indicator for each relay
  • Fast switching speed
  • Longer lifespan
  • Inbuilt resistive fuse to protect from the excessive current drain
  • Can be controlled directly by Arduino or other microcontrollers

Applications:

  • Home Automation
  • Automotive applications
  • Industrial applications
