Description

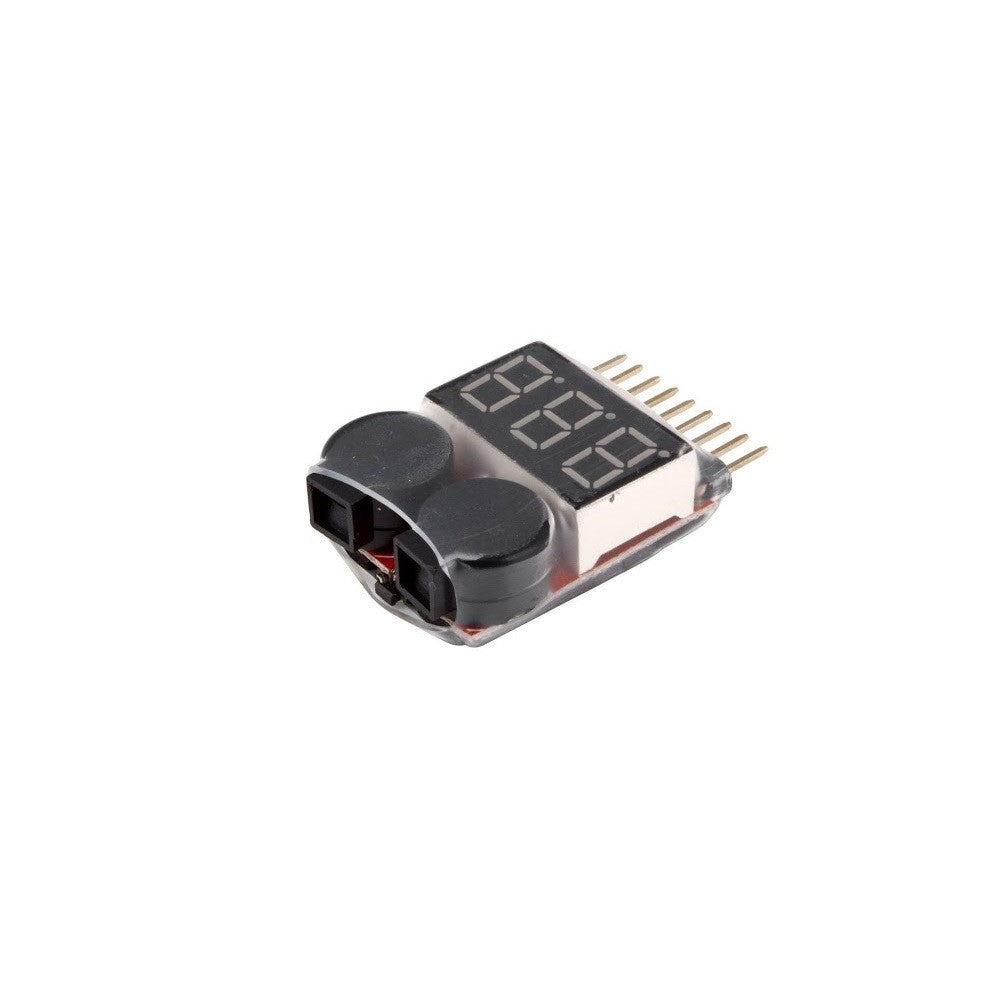

This Lipo Low Voltage Alarm can be used to get the voltage from a lipo battery. It connects to the lipo battery's balance plug and outputs the voltage of the induvidual cells and the total voltage of the battery pack. It also has an onboard alarm that beeps when the battery voltage gets low. Use this alarm to stop draining the lipo battery completely and this increases battery life and preserves the battery performance.
The alarm is small and light specifically designed for use in quadcopters and mulitrotors. A loud alarm will sound with flashing LED if the voltage on any of the individual cell drops below the adjustable threshold.We highly recommend using a LiPo Low Voltage Alarm all the time while using a Lithium Polymer Battery. Since if the voltage of any of the cells of a Lithium Polymer Battery drops below 3 volts, then that particular cell can be permanently damaged.
Technical Specification:
- Input: 1S-8S Battery
- Battery type: Lipo/LiFe/Li-ion/LiMn
- Cell Voltage Display Range: 0.5v-4.5v
- Total Voltage Display Range: 3.7-36v
- Alarm set values: Off or 2.7-3.8v
- Size: 12m*40mm*25mm (L*W*H)
Features:
- Low voltage Buzzer alarm mode for 1-8S
- With a push key by which you can change the value settings and save.
- When voltage is below the set value, it will buzzer very loudly with red LED light (pre-set value is 3.3V)
- Mini shape, no larger than a common key
- Compact, easy to carry
- Really useful in flight if you can't see the lights
Applications:
- RC Quadcopter, helicopter, multicopter,car,boat and airplane,1S-8S / Lipo / Li-ion / Li Mn / Li-Fe battery
