Description

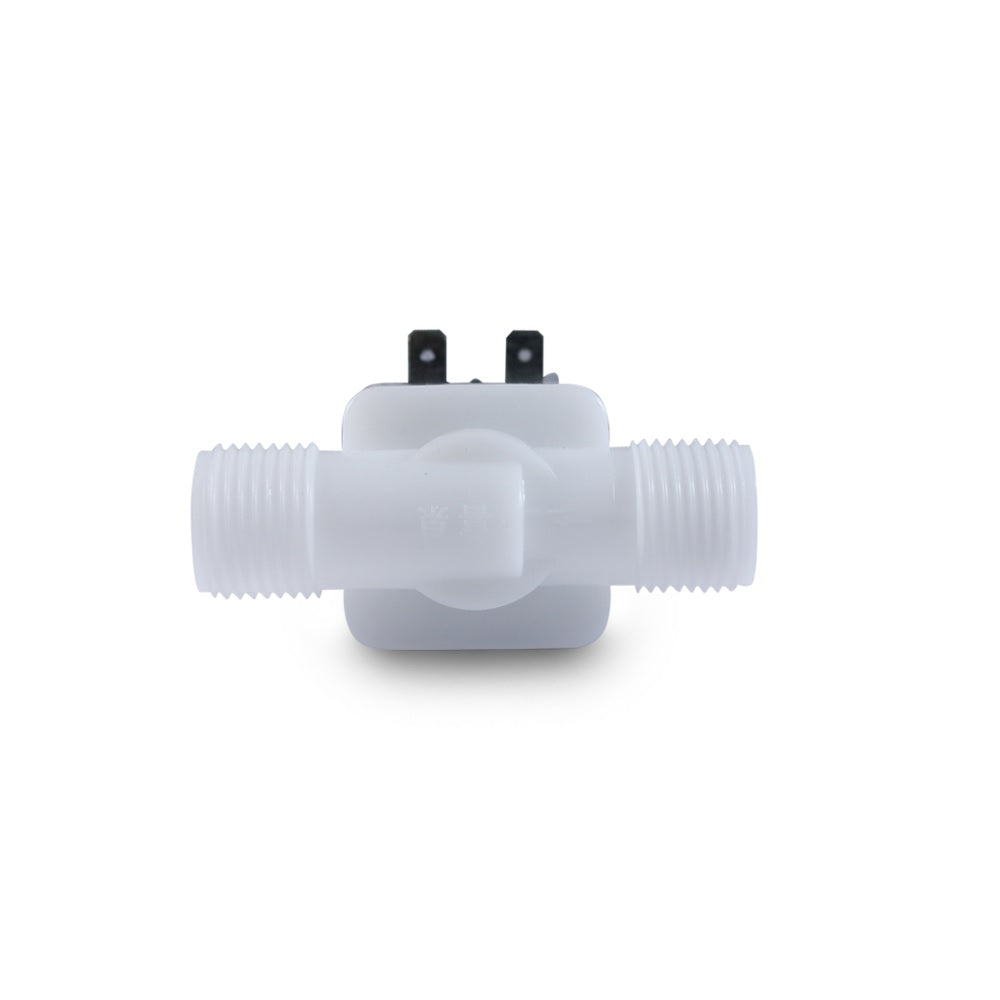

This valve can be used to control the flow of water from a micro controller. It is normally closed type which means it is closed when not powered and any liquid will be unable to flow through it. When 12V is supplied to it, the internal valve opens and the liquid will be able to flow through it. It comes with 0.5" Threaded connector to connect pipes directly to it.
Technical Specification:
- Position: Normally Closed
- Port Size: 1/2" Male NPT
- Voltage:12V DC
- Body Material: POM Plastic
- Components: Stainless Steel
- Orifice Size: 5 mm
- Temp Range: 32 to 125° F / 0 to 50°C
- Coil Connection: Terminal
- Size: 39in*2.85in*1.65in (H*L*W)
Features:
- Compact and convenient
- Easily installed and serviced
- Precise and reliable
- Not only can it provide a steady flow, but it also prevents dry burning
- Suitable for fluids like water, oil, air
Applications:
- Water Filters
- Ice Makers
- Drinking Fountains
- Washing Machines
- Dishwashers
- Dental Tools
- Fish Tanks
- Beer Brewing
- Hydroponics
