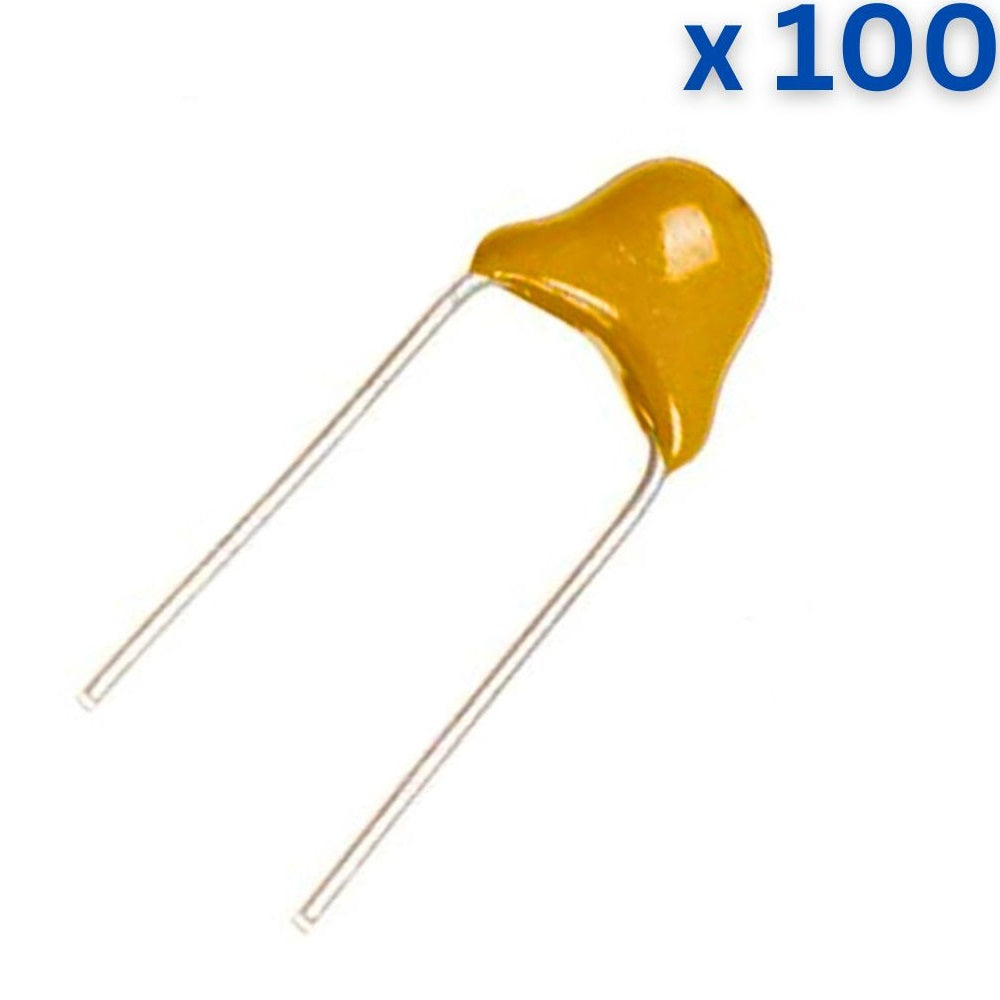

0.0047uF (472) Multilayer(Mylar) Capacitor

SKU: 001044H

Title: 100 Pcs
Price:
Sale price Rs. 84.75
(excl.18% GST)
Rs. 100.00

Description

Mylar Capacitors i.e polyester capacitors (PET) can withstand high voltages in a relatively small package and provides high resistance against moisture. The Mylar Capacitors has no polarity i.e they can be connected in any direction. They are breadboard friendly and can be easily used on a perf board also.

Technical Specification:

  • Type :  Mylar Capacitors
  • Capacitance : 0.0047uf (472)
  • Rated Voltage : 400V(2G)
  • Capacitance Tolerance : ±5%(J)
  • Lead Pitch(Mm) : 6.0mm
  • Temperature Range : -25 To 85°C
  • Rated Freq(HZ) : 60HZ
  • Weight : 2gm

Features:

  • Appearance good consistency
  • Good solder ability
  • Non-inductive construction and self-healing property
  • Space-Saving small size
  • Long Life
  • Low Cost
  • Easy Mounting
  • RoHS Compliant

Pin Description:



Applications:

  • High frequency filtering applications
  • Outdoor applications where moisture is a problem
  • High voltage/current peaks handling circuits
  • Coupling and De-coupling circuits
