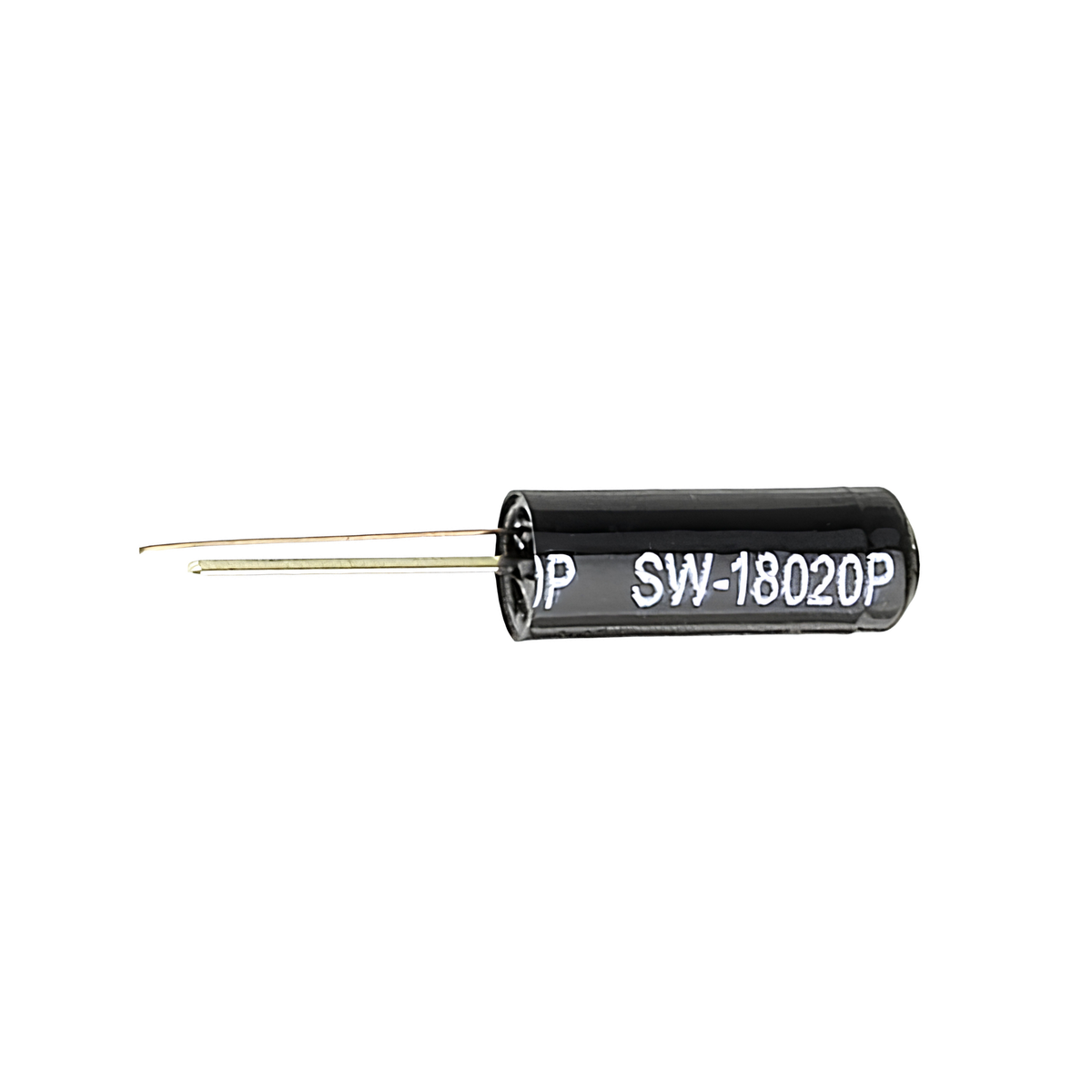

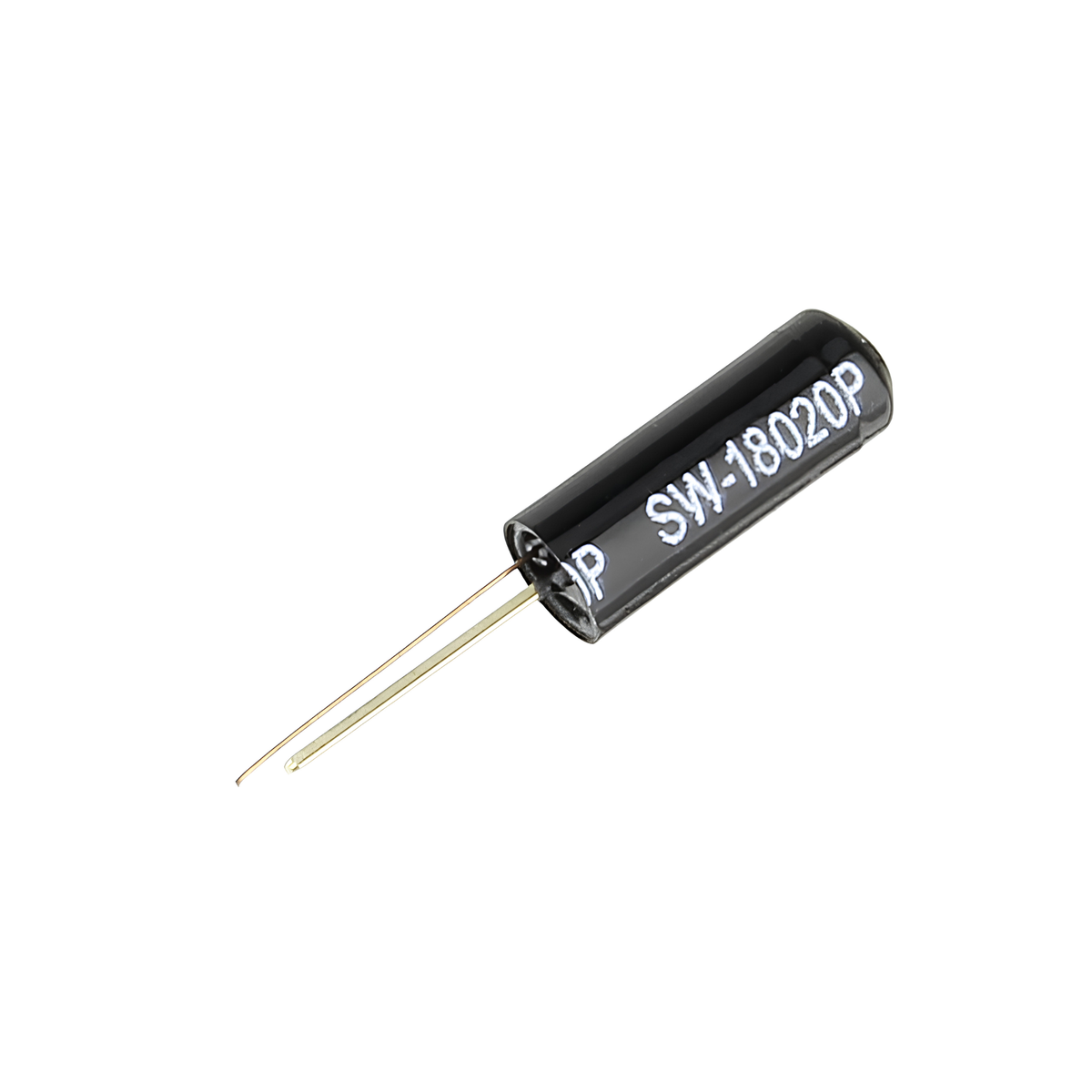

SW-18020P Vibration Sensor – Spring Type Shock Detection Switch

The SW-18020P Vibration Sensor is a compact, spring-type mechanical vibration switch designed to detect vibrations, shocks, and sudden movements in electronic circuits. Featuring a normally open contact mechanism, the sensor responds to external mechanical disturbances by momentarily closing its internal contacts, enabling simple and effective vibration detection.

The sensor features a sealed cylindrical housing with two connection terminals, providing dependable switching operation in low-current electronic applications. Its omnidirectional sensing mechanism allows vibration detection from different angles without requiring a fixed orientation.

The SW-18020P Vibration Sensor is suitable for anti-theft alarm systems, smart home devices, automotive electronics, electronic toys, and microcontroller-based projects. Its compact design and simple two-pin interface make it convenient to integrate into electronic circuits requiring motion-triggered switching.

Technical Specifications:

• Model: SW-18020P
• Sensor Type: Mechanical vibration switch
• Operating Principle: Spring contact vibration detection
• Contact Type: Normally Open
• Number of Pins: 2

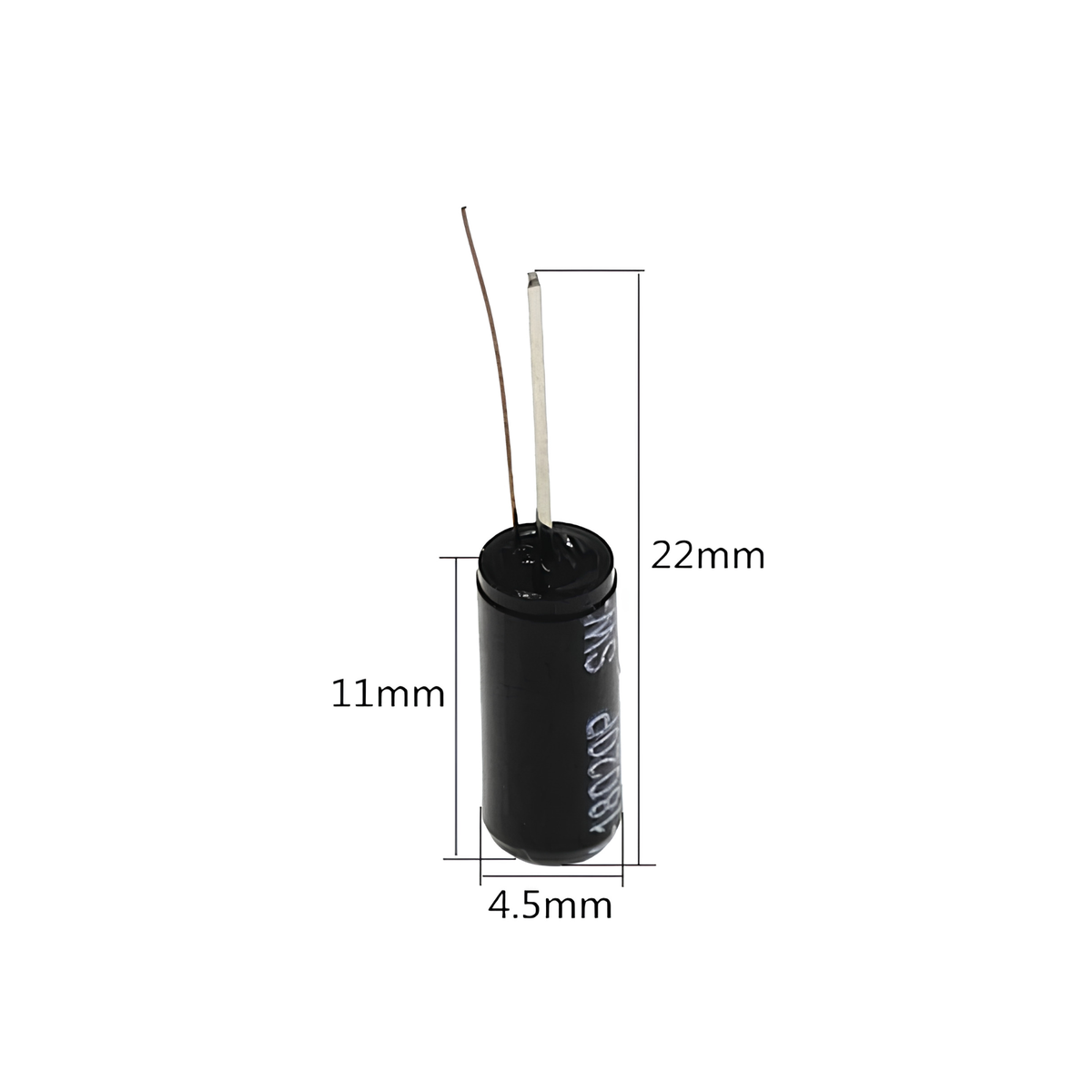

• Body Length: Approx. 11 mm
• Body Diameter: Approx. 4.5 mm
• Overall Length: Approx. 22 mm
• Mounting Type: Through-hole
• Detection: Vibration, shaking and mechanical movement
• Output: Contact switching signal

Features:

• Compact cylindrical construction
• Sensitive to vibration and movement
• Simple two-pin connection
• Fast mechanical switching response
• Low-power sensing solution
• Easy integration with microcontrollers
• Suitable for PCB and DIY circuit applications
• Can detect vibration from different directions

Applications:

• Anti-theft alarm systems
• Vibration detection circuits
• Security devices
• Electronic toys
• Movement-triggered projects
• Automotive electronics
• Smart home projects
• Arduino and ESP32 projects
• Equipment vibration monitoring
• DIY electronic experiments
