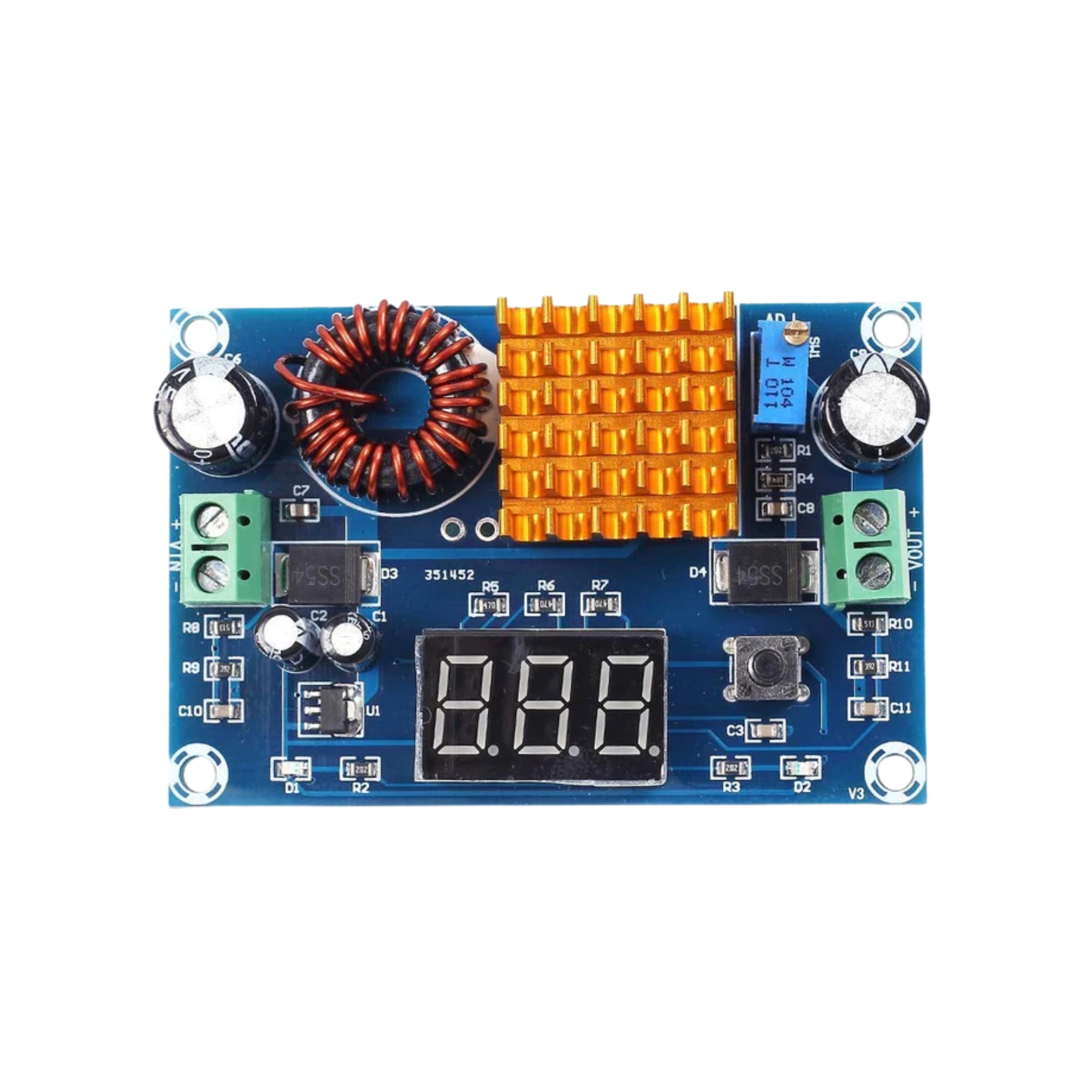

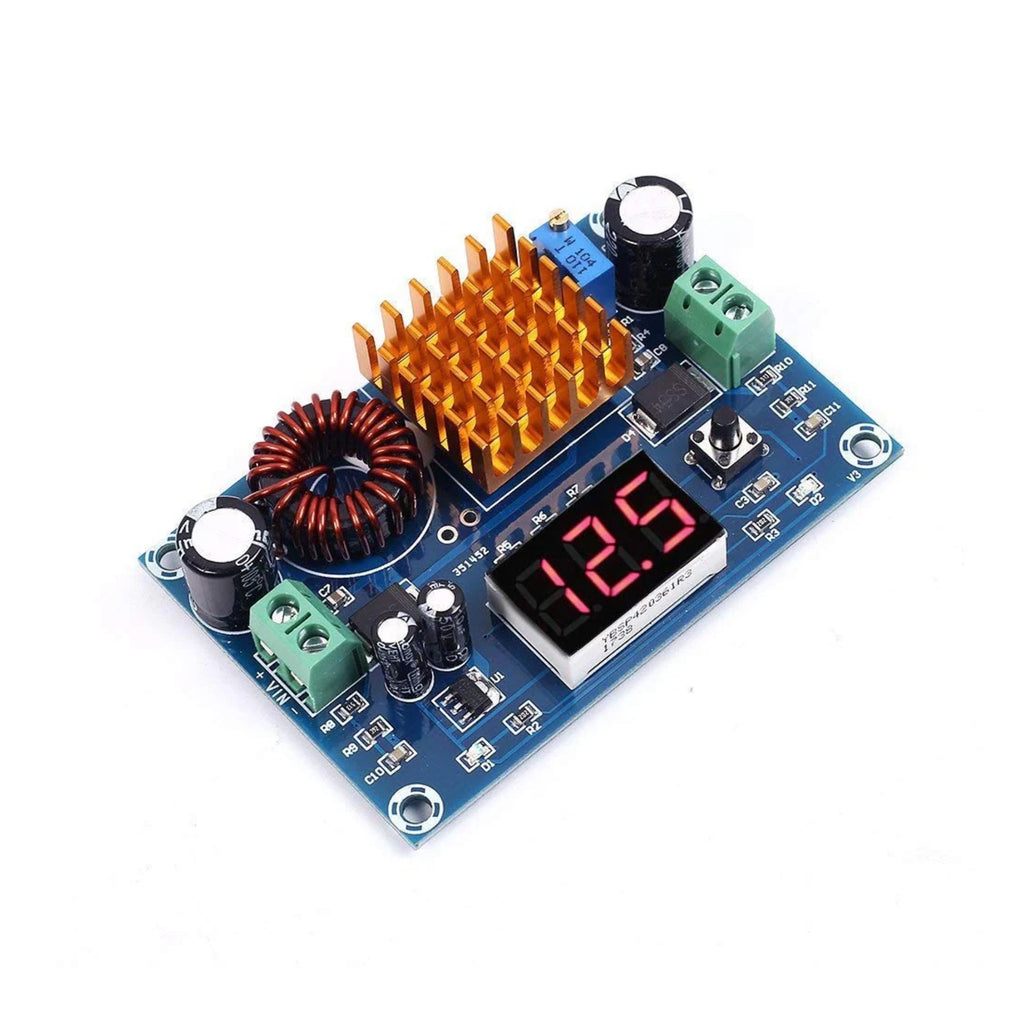

M411 5A DC-DC Boost Converter Display

The M411 is a high-power DC-DC boost (step-up) converter module with an integrated digital voltage display. It is designed to increase a lower DC input voltage to a higher, adjustable DC output voltage with good efficiency and stability. The onboard LED display allows real-time monitoring of the output voltage, making it suitable for power supply projects, battery systems, and DIY electronics.

Technical Specifications:

• Input voltage range: typically DC 5 V to 32 V
• Output voltage range: typically DC 6 V to 35 V (adjustable)
• Maximum output current: up to 5 A (with adequate cooling)
• Conversion type: Step-up (boost) DC-DC
• Display: 3-digit LED digital voltmeter
• Efficiency: up to ~90% (depends on input/output conditions)
• Switching frequency: high-frequency PWM control
• Cooling: Onboard aluminum heatsink
• Adjustment: Multi-turn potentiometer for output voltage
• Connections: Screw terminals for input and output

Features:

• Integrated digital display for output voltage monitoring
• High current capability up to 5 A
• Wide input and output voltage range
• Efficient boost conversion with low ripple
• Compact design with mounting holes
• Over-current and thermal protection (design-dependent)

Applications:

• Battery-powered systems requiring higher voltage
• DIY power supply projects
• Solar and renewable energy systems
• Automotive and portable electronics
• Laboratory and testing power modules
• LED drivers and motor supply circuits
