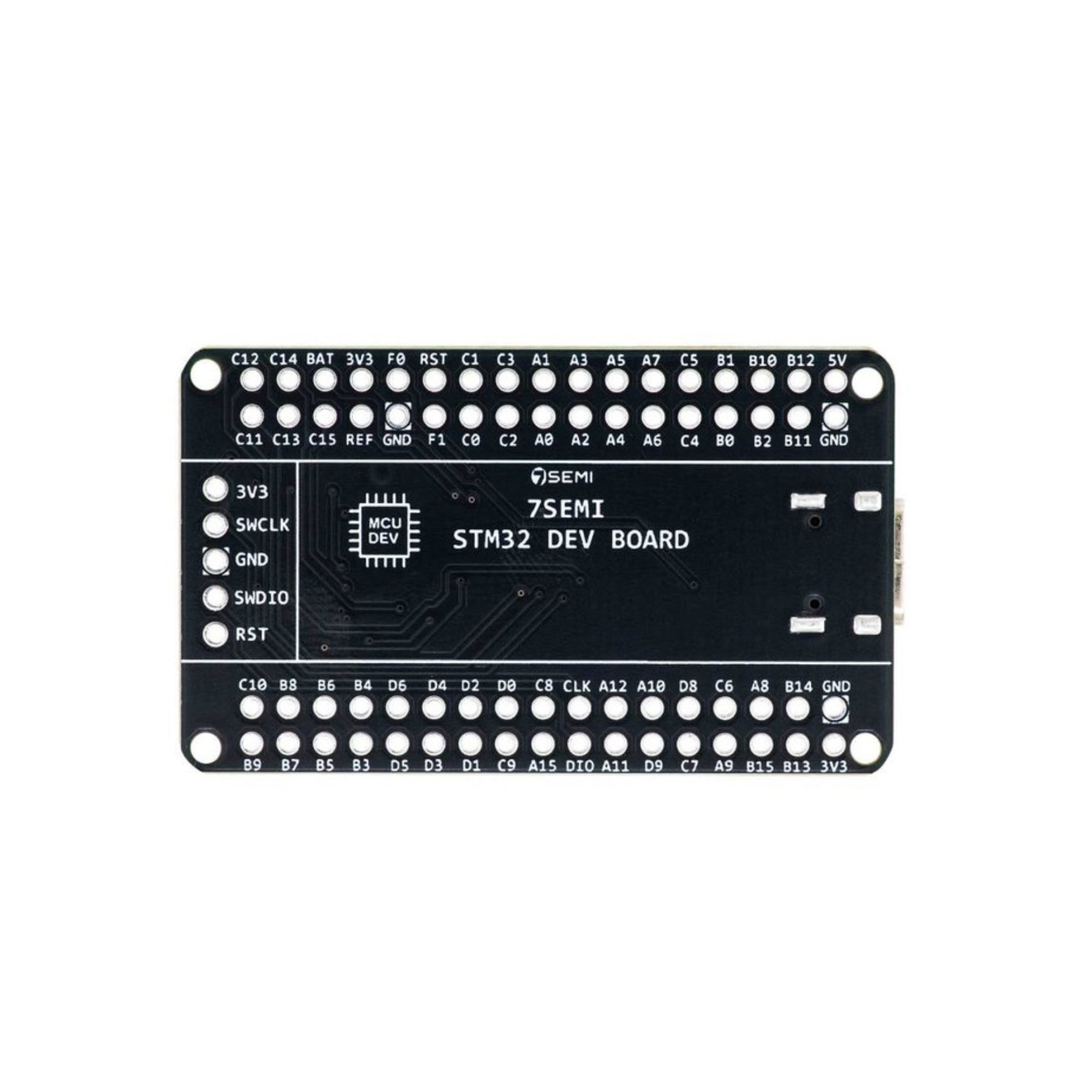

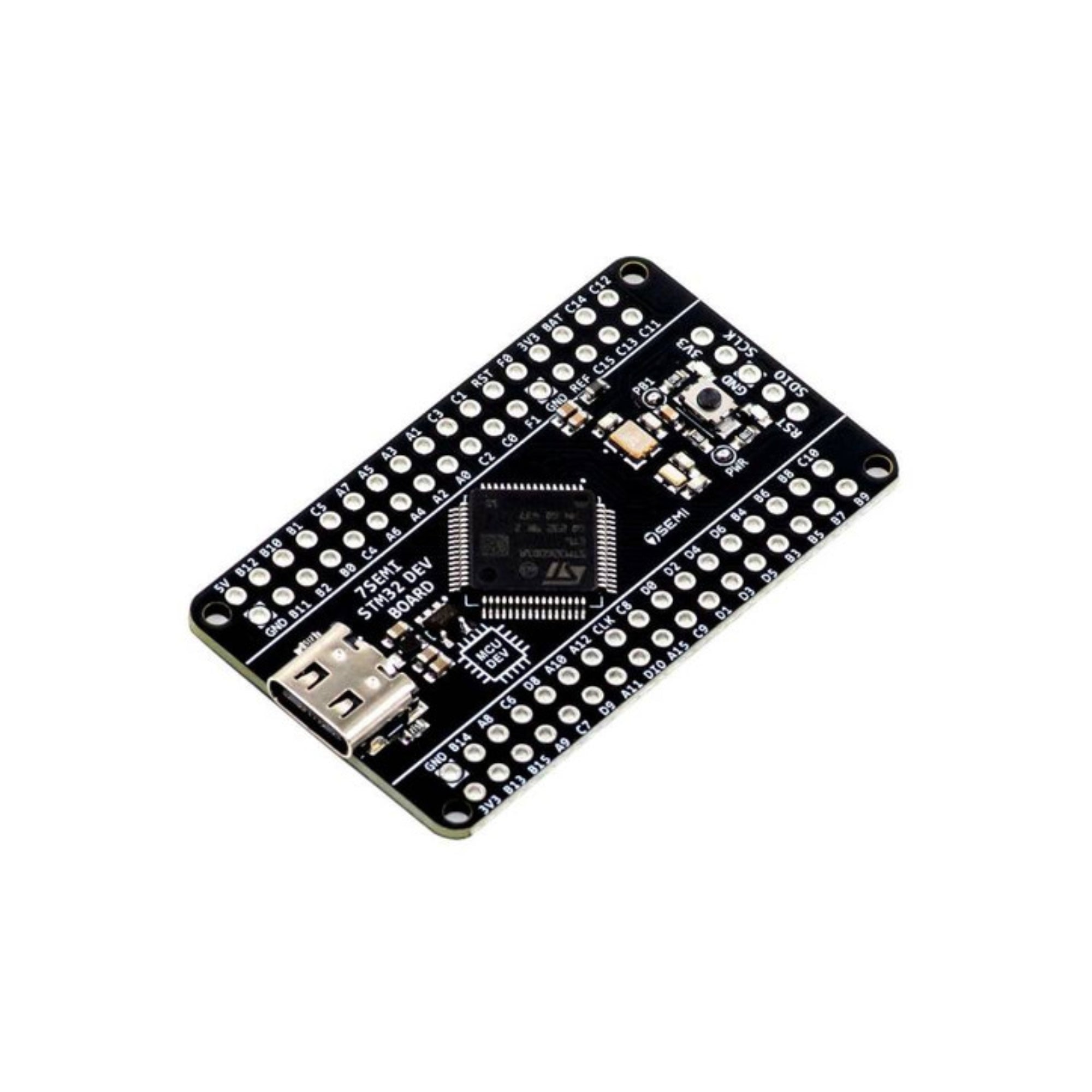

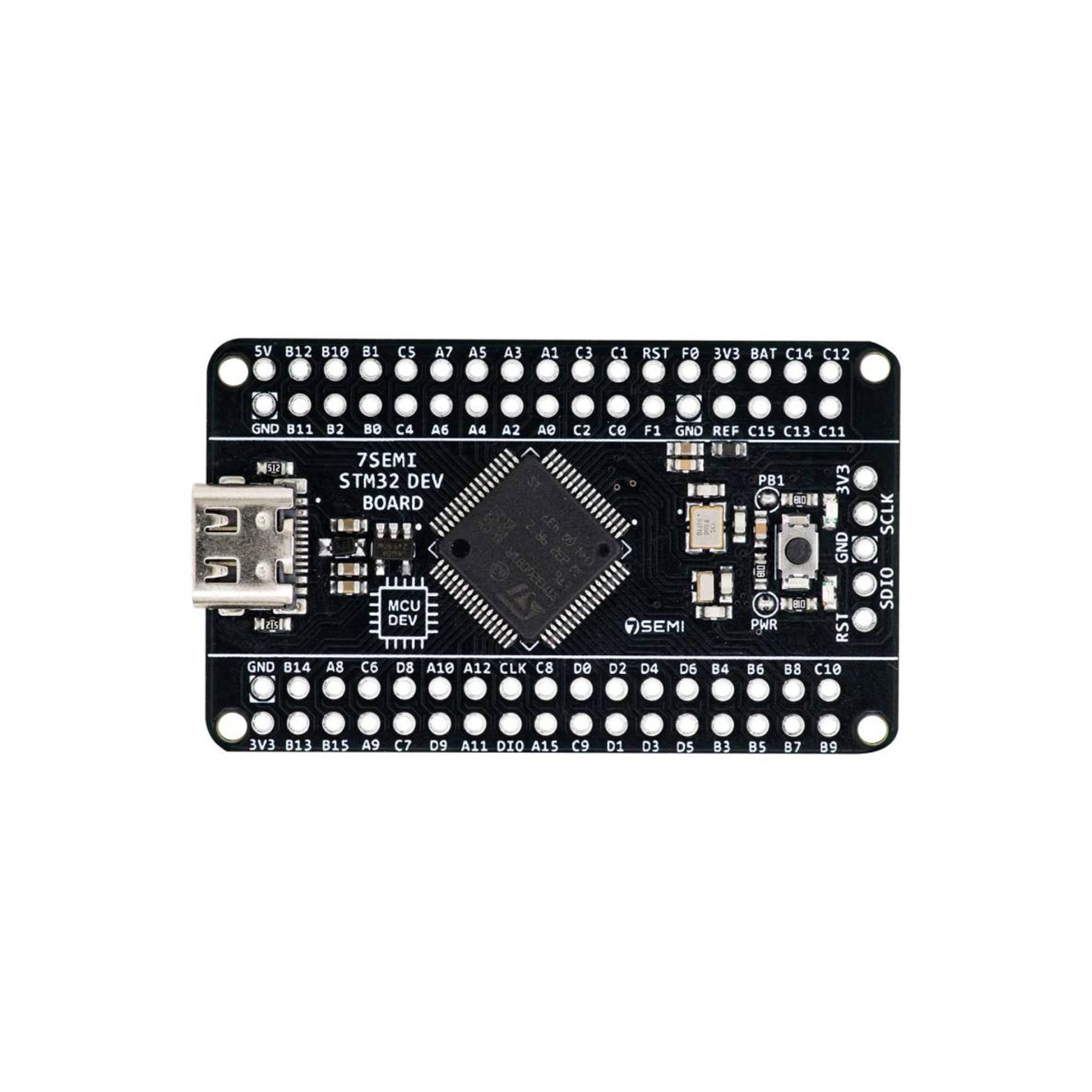

7Semi STM32G0B1RET6 Development Board - Arm Cortex

The 7Semi STM32G0B1RET6 Development Board is a compact and versatile platform based on the STM32G0B1RET6 microcontroller featuring an Arm Cortex-M0+ core. It is designed for building embedded, industrial, IoT, and automation applications where efficient performance, rich peripherals, and low-power operation are required. This development board includes USB power support, breakout headers for GPIO access, and SWD debug compatibility, making it suitable for rapid prototyping and product development.

Technical Specifications:

• Microcontroller: STM32G0B1RET6, Arm Cortex-M0+
• Clock Frequency: Up to 64 MHz
• Flash Memory: 512 KB
• SRAM: 144 KB
• Operating Voltage: 1.7 V to 3.6 V
• Operating Temperature: –40 °C to +85 °C (industrial grade)
• I/O Pins: Up to 60 I/Os (depending on board breakout)
• Interfaces: USART, SPI, I²C, USB 2.0 Full-Speed, FDCAN, ADC, DMA, RTC, timers
• ADC: 12-bit resolution
• Connectivity: USB for power and programming
• Debug Interface: SWD
• Board Format: Breadboard-friendly development form factor

Features:

• High-performance 32-bit microcontroller with large Flash and SRAM capacity
• Rich peripheral set enabling advanced embedded control and connectivity
• Industrial-grade temperature support for robust field use
• USB power and integrated SWD for easy development and debugging
• Compact, easy-to-integrate board layout
• Low-power operation suitable for battery-driven devices
• Ideal upgrade path from 8-bit and 16-bit microcontrollers

Applications:

• IoT nodes, telemetry and sensor hubs
• Industrial automation, robotics and motor control
• Data acquisition and real-time monitoring systems
• Consumer electronics and appliance control
• Portable and battery-powered embedded devices
• Prototyping and educational project development
• Communication and control modules using USB, UART, CAN, SPI or I²C interfaces
