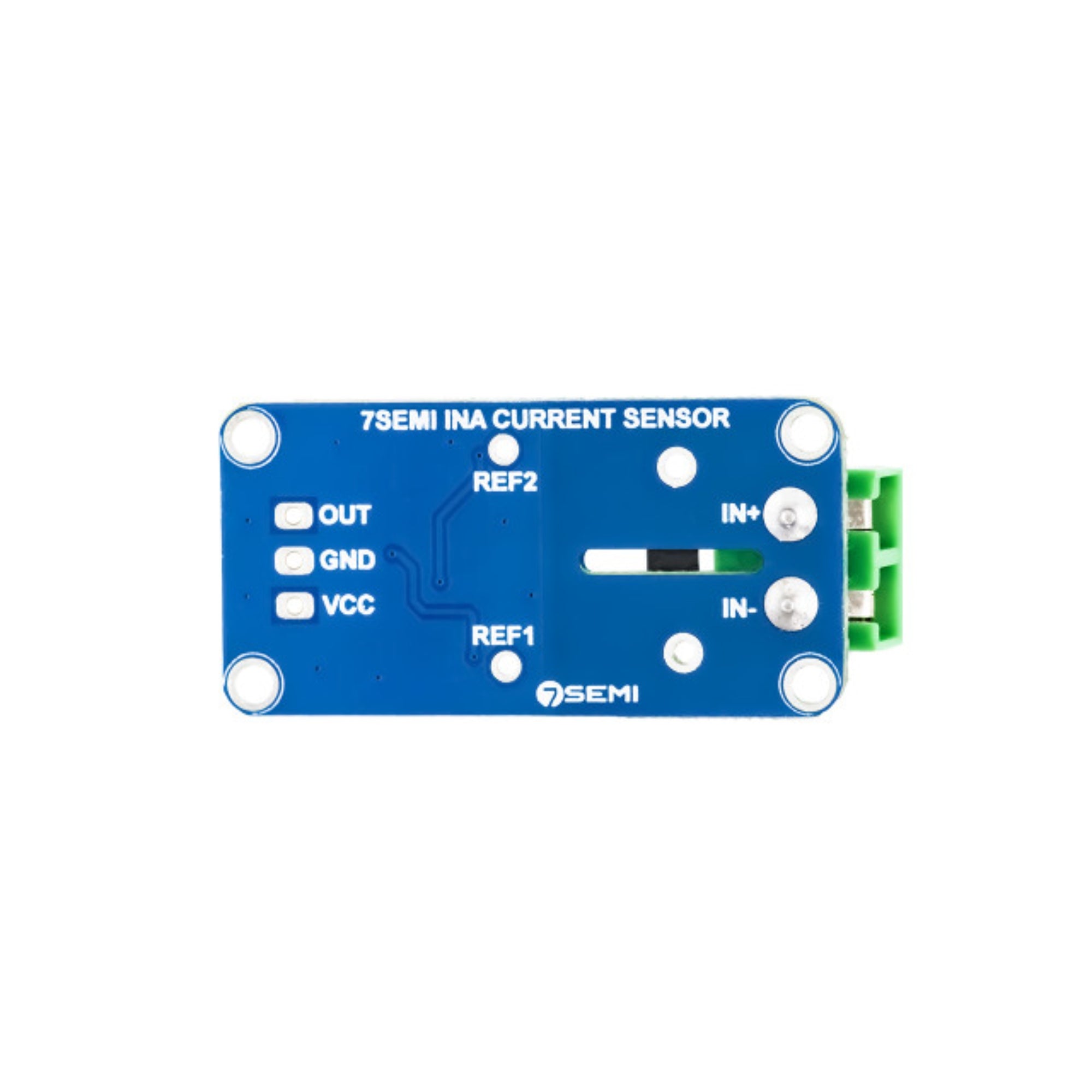

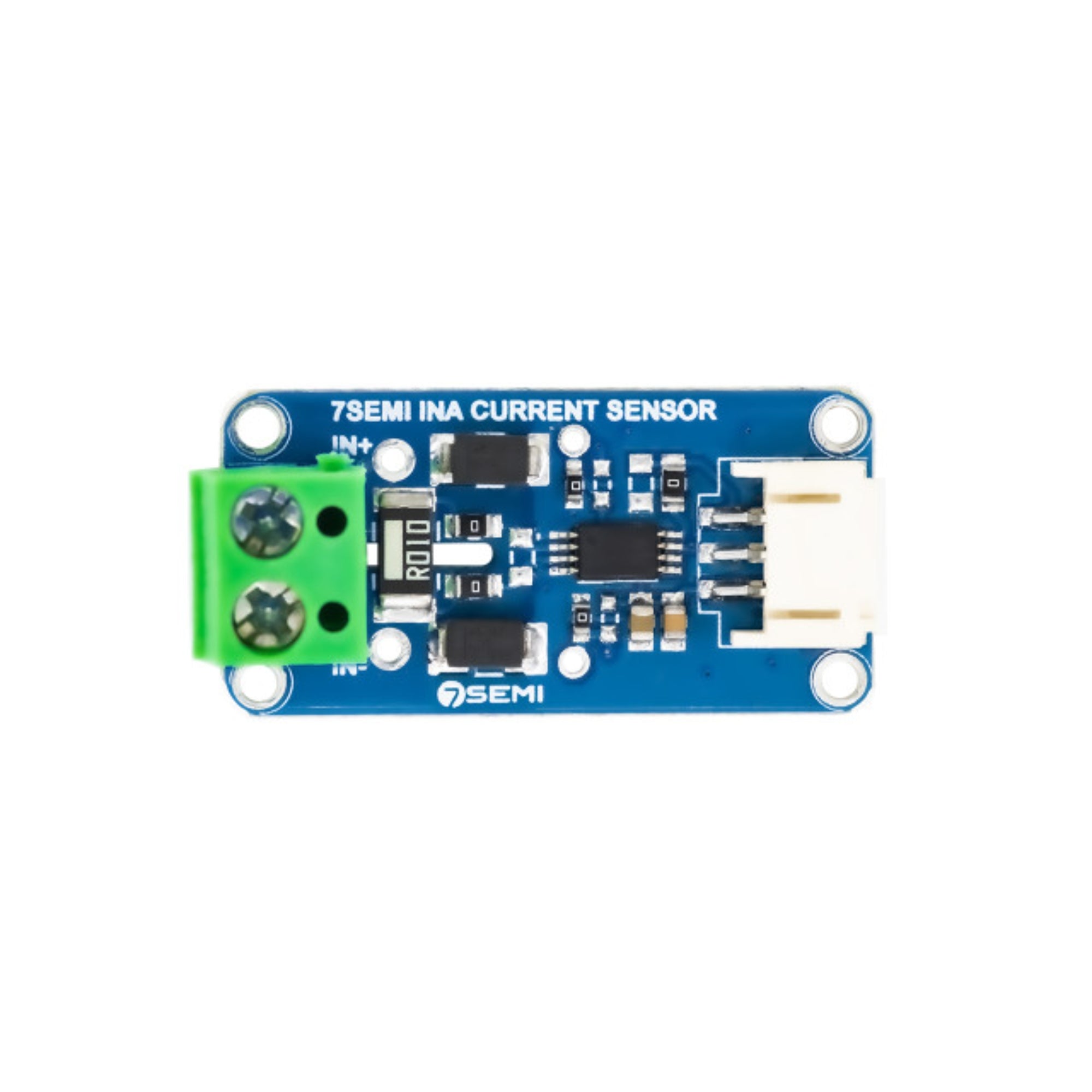

7Semi INA240A2 4~80V Bidirectional Current Sense Amplifier Breakout, 50V/V Gain

The 7Semi INA240A2 Breakout is a high-precision, bidirectional current-sense amplifier module based on the Texas Instruments INA240A2. Designed for accurate current measurement across a shunt resistor, the module provides a proportional voltage output with excellent noise rejection and stability. With a wide common-mode voltage range from –4V to +80V and a 50V/V gain, it is ideal for motor control, battery systems, DC-DC converters, and other applications requiring robust high-side or low-side current sensing.

Technical Specifications:

• Amplifier IC: INA240A2 (Texas Instruments)

• Common-Mode Voltage Range: –4V to +80V

• Gain: 50V/V

• Supply Voltage: 2.7V to 5.5V

• Quiescent Current: ~2.4mA max

• Output Type: Analog voltage output proportional to sensed current

• Input Type: Voltage drop across external shunt resistor

• CMRR (DC): ~132 dB (high noise immunity)

• AC CMRR: ~93 dB at 50 kHz (excellent for PWM systems)

• Response Time: Fast settling for dynamic, high-speed switching environments

• Operating Temperature: –40°C to +125°C (IC rating)

• Sensing Configuration: High-side or low-side bidirectional sensing

• Board Type: Compact breakout board for easy integration

Features:

• Wide –4V to +80V common-mode voltage tolerance

• Bidirectional current sensing for charge/discharge and reverse current monitoring

• Accurate amplification of very small shunt voltages

• 50V/V fixed gain ideal for precise current measurements

• Exceptional PWM and switching noise rejection

• Zero-drift architecture ensures long-term stability and low offset

• High bandwidth and fast response for dynamic loads

• Works in both high-side and low-side configurations

• Suitable for microcontroller ADC interfacing

• Compact and easy-to-use breakout board design

Applications:

• Battery charging/discharging current monitoring

• Motor drivers, BLDC controllers, and servo motor systems

• Power supply and DC-DC converter current sensing

• Solar charge controllers and renewable energy systems

• Overcurrent detection and power diagnostics

• Industrial control systems and automation

• Robotics and mechatronics current feedback

• IoT power monitoring and smart energy systems
