Description

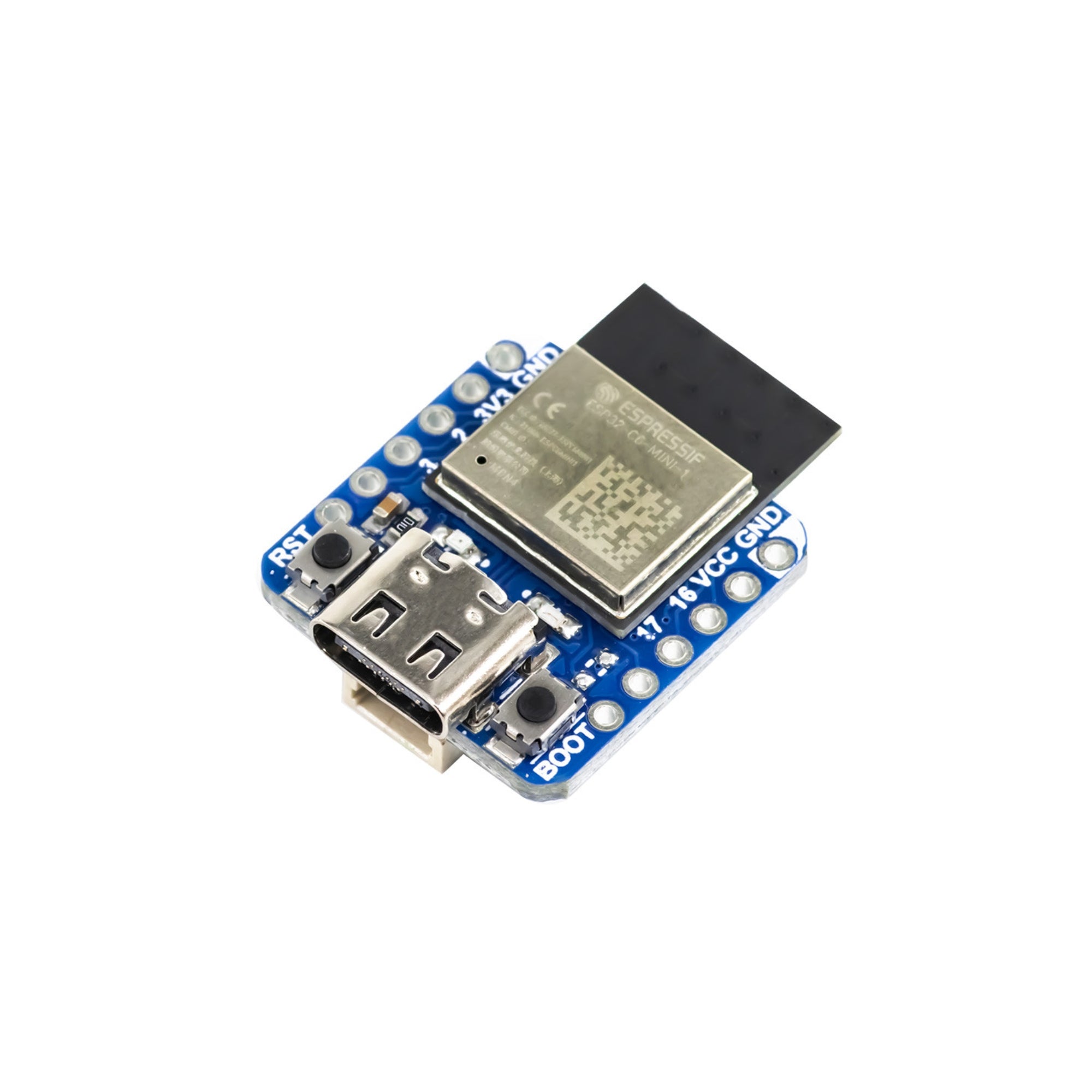

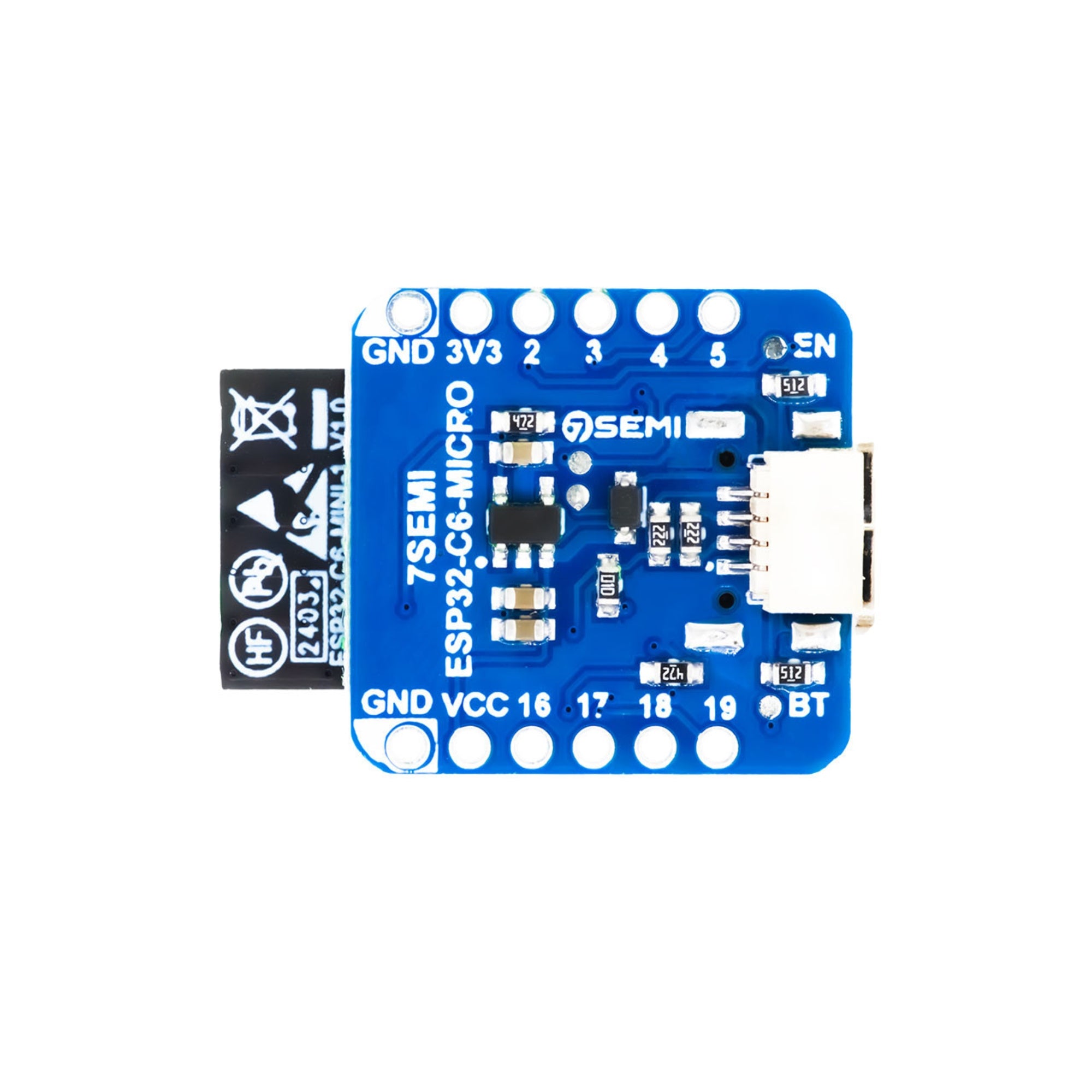

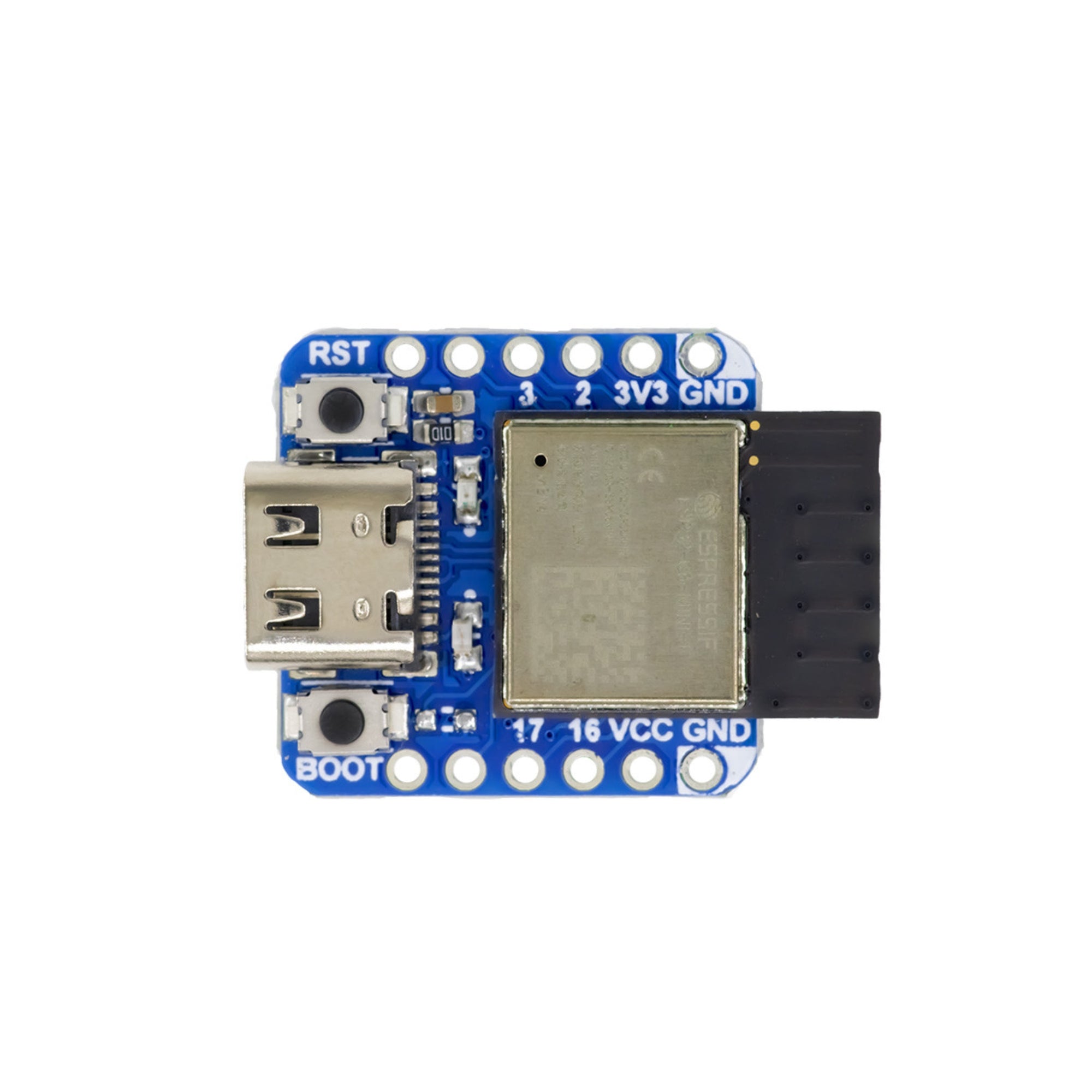

The 7Semi ESP32-C6 Mini WiFi Development Board Qwiic is a compact wireless development board based on the ESP32-C6-MINI-1 module. It features a RISC-V single-core processor with integrated WiFi 6, Bluetooth BLE/5.x, and Thread/Zigbee connectivity. Equipped with a USB-C port for programming and power, and a Qwiic connector for easy sensor expansion, this board is ideal for modern IoT, automation, and low-power embedded applications.
Technical Specifications:
- Processor: ESP32-C6-MINI-1 (32-bit RISC-V single-core)
- Memory: 4 MB Flash
- Wireless Connectivity: WiFi 6 (2.4 GHz), Bluetooth BLE/5.x, Thread/Zigbee (802.15.4)
- GPIO Pins: Up to 23 multifunction GPIOs
- ADC: Up to 7 channels (12-bit resolution)
- UART: Up to 2 UARTs with flow control
- Additional Interfaces: I²C, SPI, PWM, I²S
- USB Connector: USB Type-C for power and programming
- Expansion: Qwiic connector for plug-and-play I²C modules
- Logic Level: 3.3 V
- Supply Voltage: 5 V via USB
- Power Efficiency: Supports deep-sleep low-power modes
- Board Type: Compact mini development board
Features:
- Integrated WiFi 6, BLE, and Thread/Zigbee support
- Compact size suitable for space-constrained projects
- USB-C interface for easy development and debugging
- Qwiic connector for quick sensor and module integration
- Rich peripheral access with flexible pin mapping
- Breadboard-friendly layout
- Low-power design ideal for battery-powered devices
- Ideal for rapid prototyping and production design
Applications:
- IoT automation and smart home devices
- Wireless sensor networks
- Wearable and portable electronics
- Thread/Zigbee mesh network nodes
- BLE-based edge controllers
- Robotics and automation
- Educational and development prototyping
- Qwiic sensor hub applications
