Description

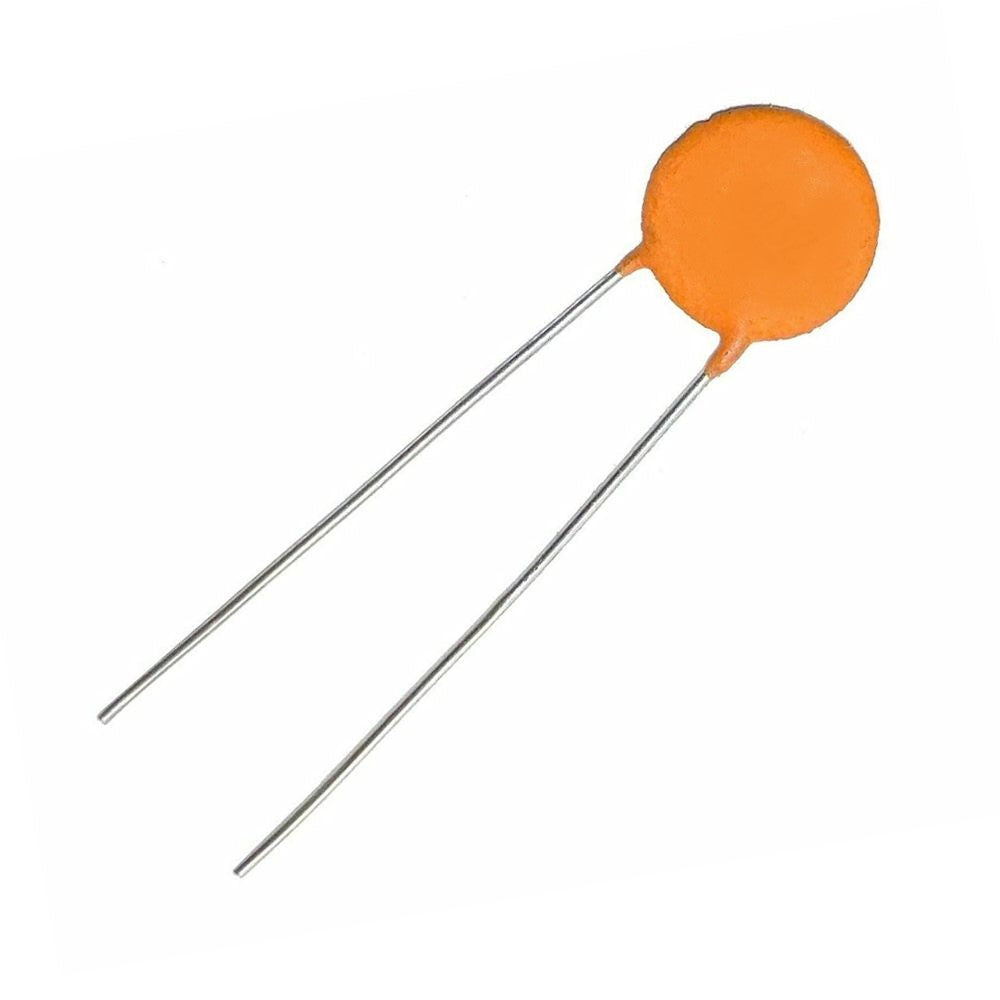

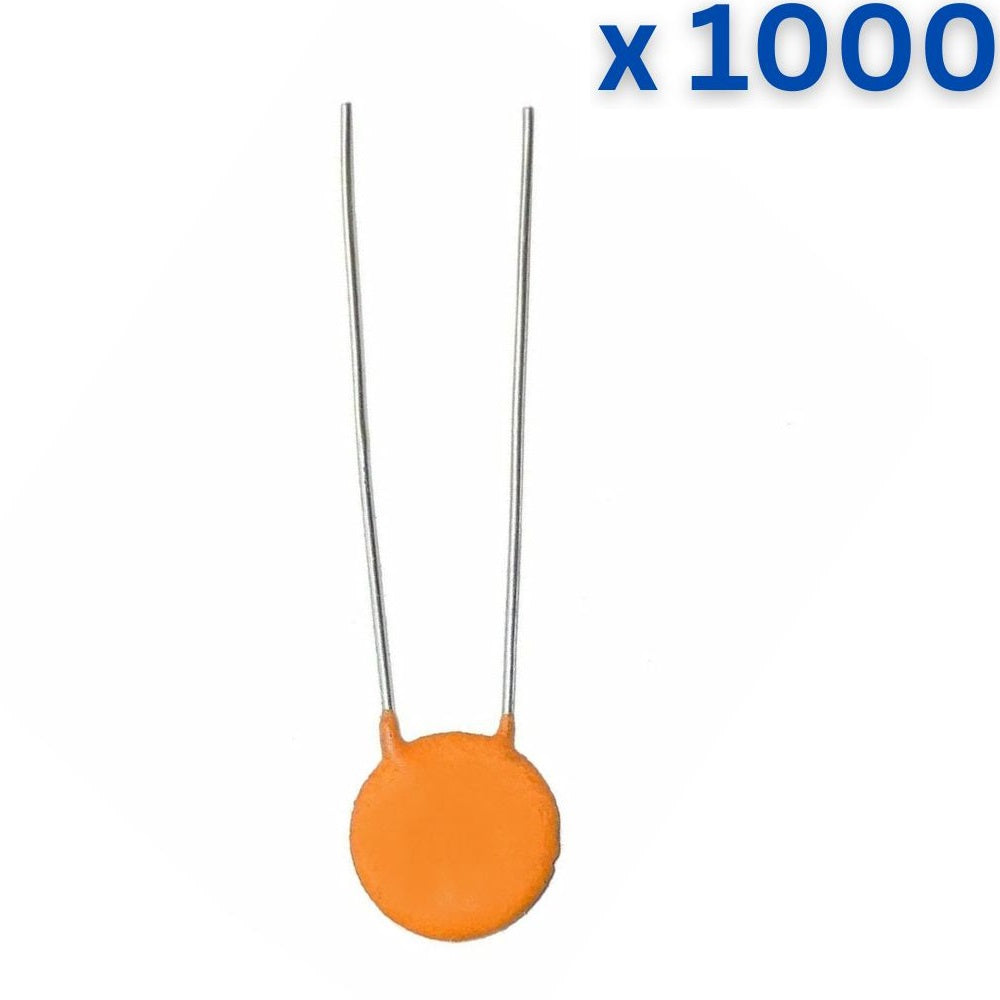

This ceramic capacitor is a non-polarized fixed capacitor made out of two or more alternating layers of ceramic and metal in which the ceramic material acts as the dielectric and the metal acts as the electrodes. The Ceramic Disc Capacitors has no polarity i.e they can be connected in any direction.They are breadboard friendly and can be easily used on a perf board also.
Technical Specification:
- Dielectric : Ceramic Disc Capacitor
- Capacitance : 150pF
- Voltage : 50V
- Product Range : MC Series
- Capacitance Tolerance : ± 20%
- Capacitor Terminals : Radial Leaded
- Lead Spacing : 10mm
- Operating Temperature Min : -25°C
- Operating Temperature Max : 85°C
- Mounting Type : Through Hole
- Size : 23 x 5 mm (LxW)
- Weight : 19g
Features:
- Capacitance has linear temperature coefficient
- Capacitance high stability
- RoHS ComplianceElectronics
- Halogen free products are available
- Low lost at wide range of frequency
- The stability of the capacitor is dependent on the ceramic dielectric
- Does not vary much with Temperature
Pin Description:
Applications:
- Transmitter stations
- Induction furnaces
- High voltage laser power supplies
- Power circuit breakers
- High-density applications
- Printed circuit boards
